For a Quality Life
Airam for Your Space.

Airam detects fine dust particles, CO2 and toxic chemical substances in the air using its high-precision sensors and smart algorithm. It portable, easy to use and usable in any circumstances.

For a Quality Life

Airam for Your Space.

Airam detects fine dust particles, CO2 and toxic chemical substances in the air using its high-precision sensors and smart
It palgorithm. ortable, easy to use and usable in any circumstances.

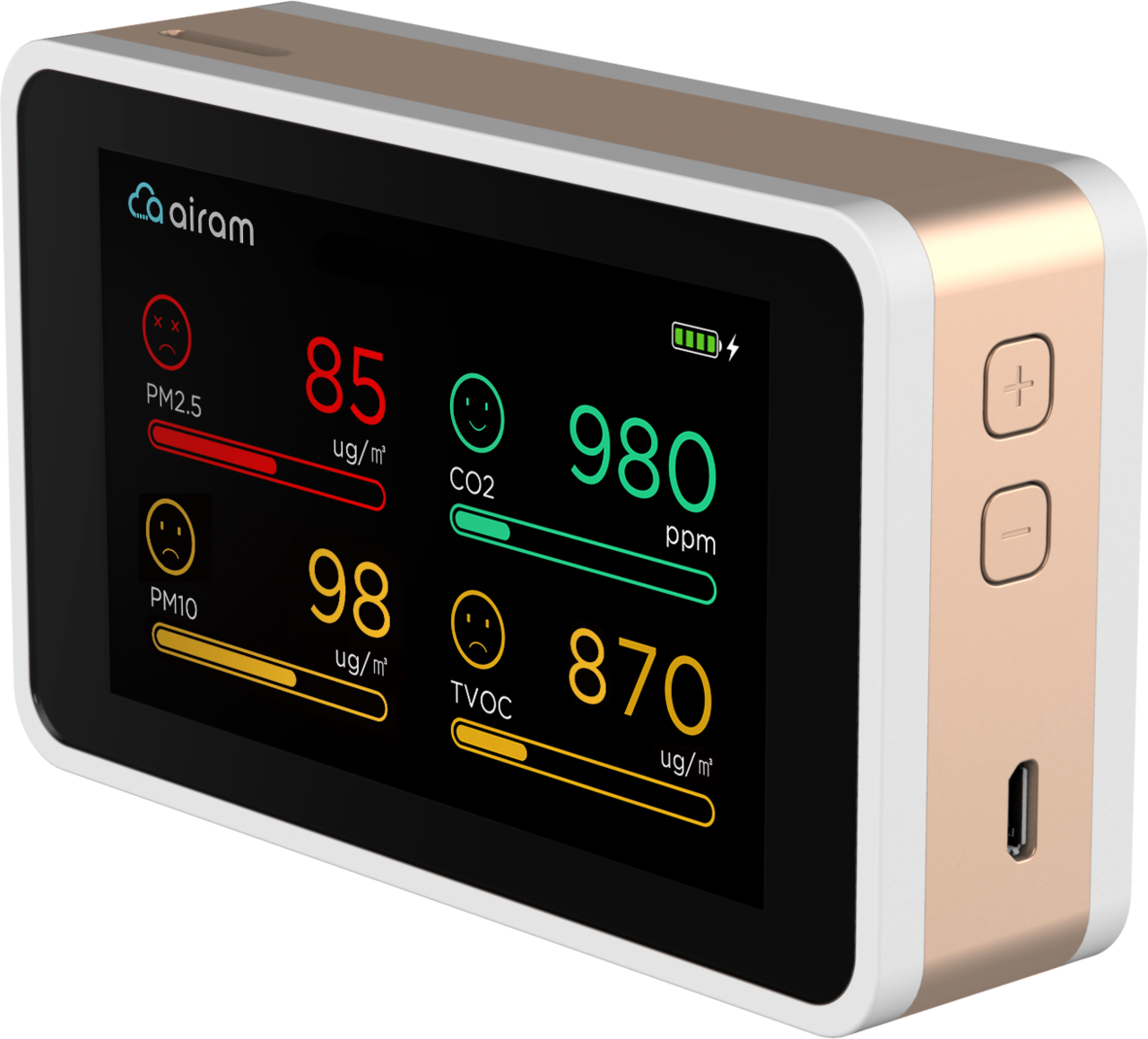

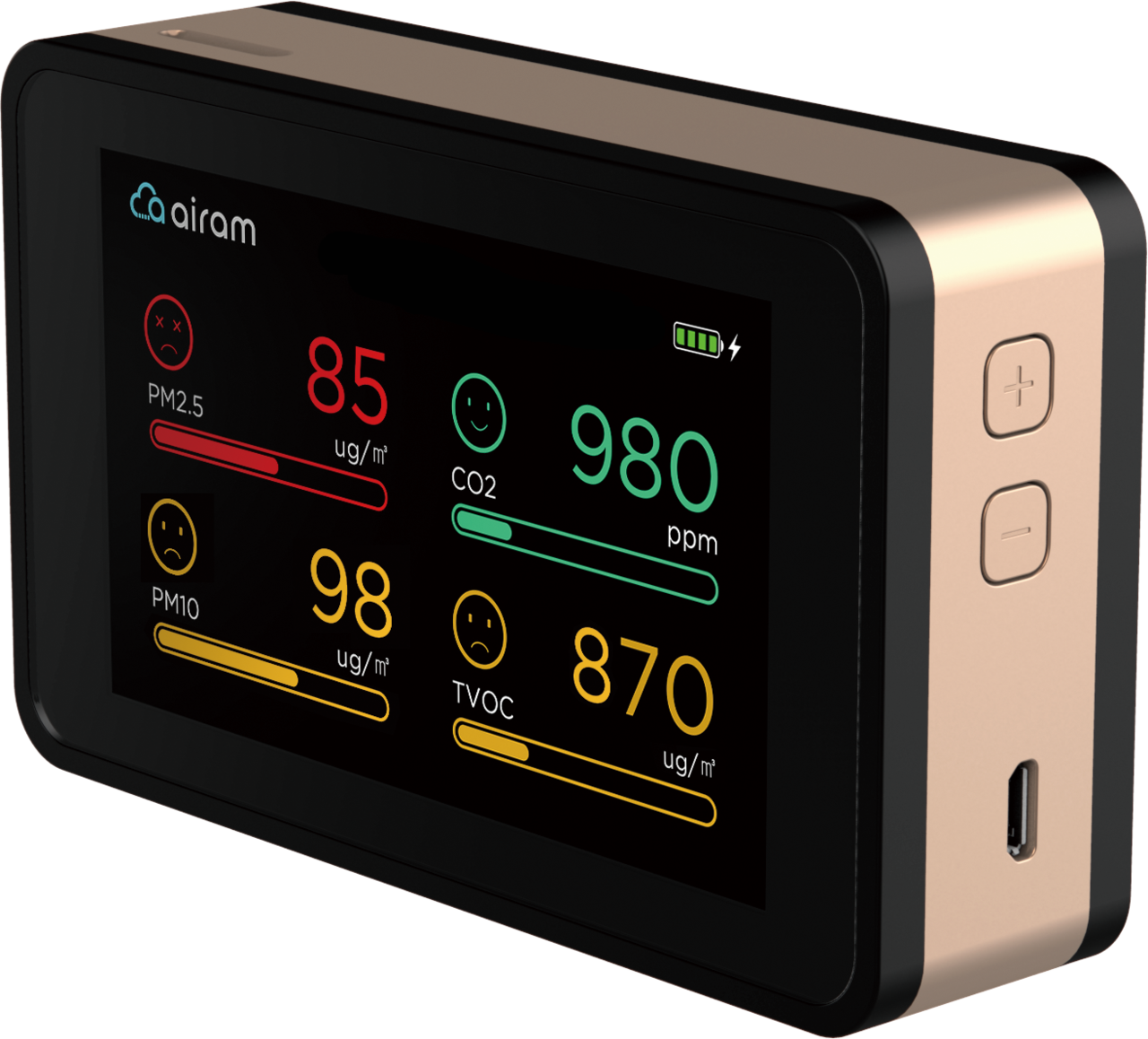

MODEL LINE

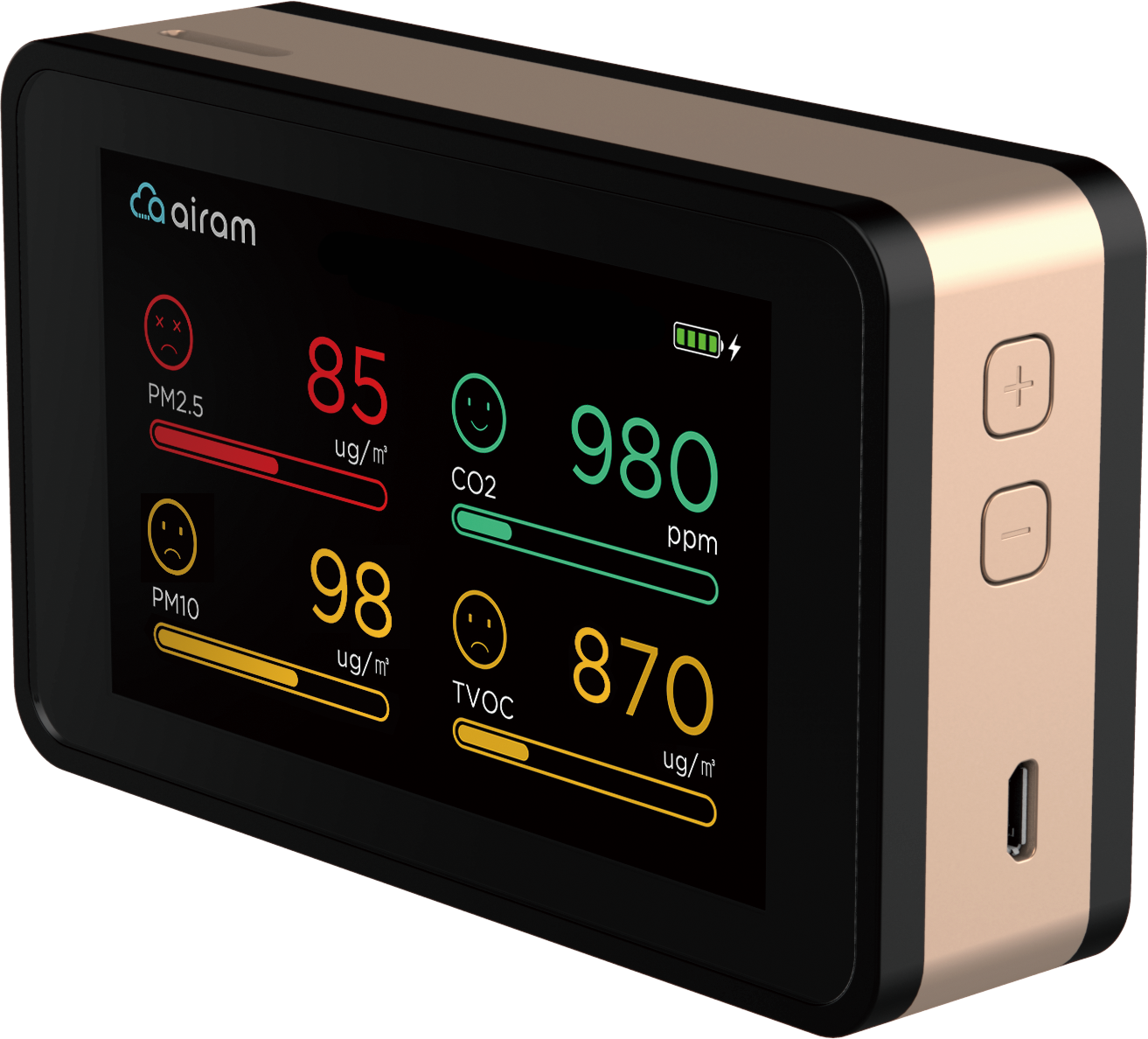

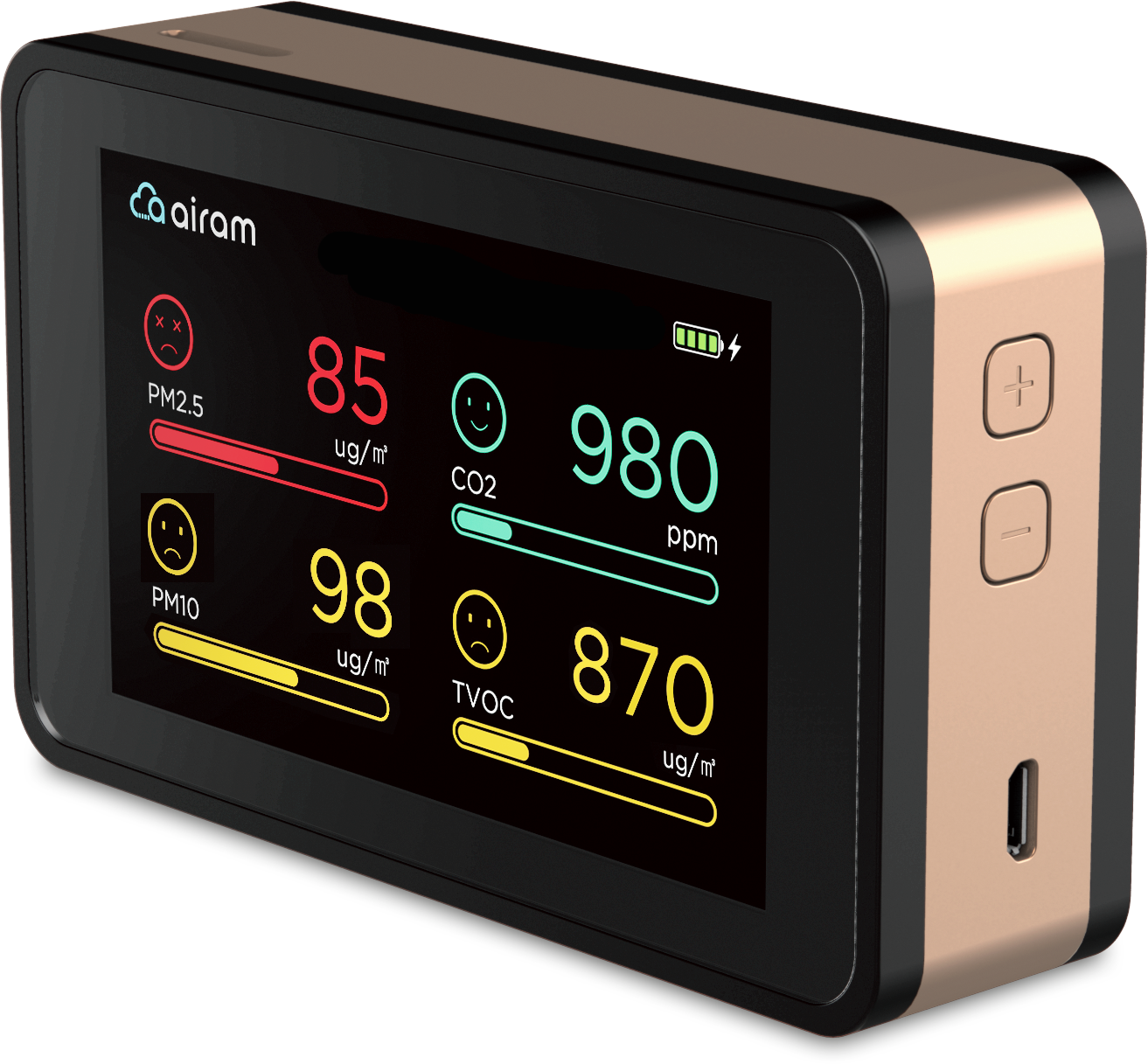

BLACK

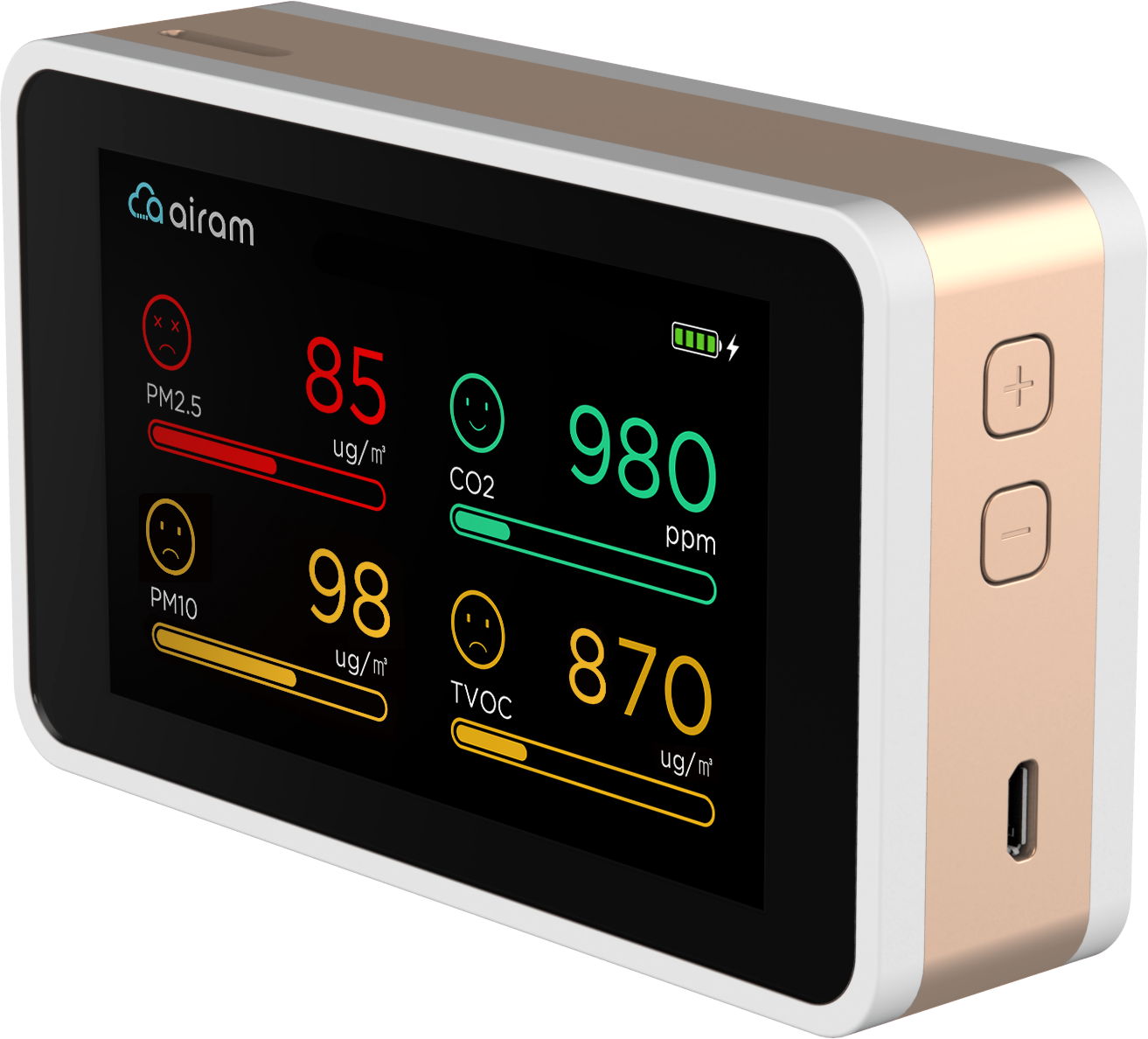

SILVER

Product Parts Description

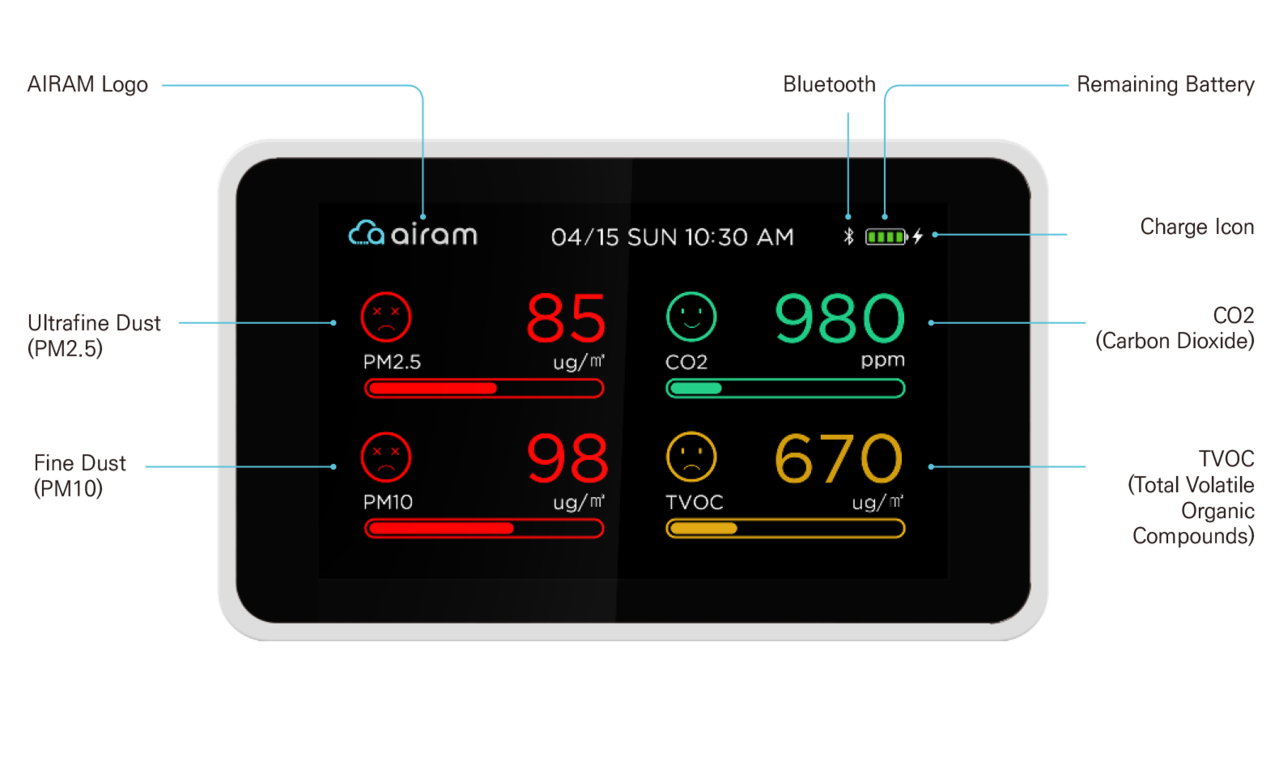

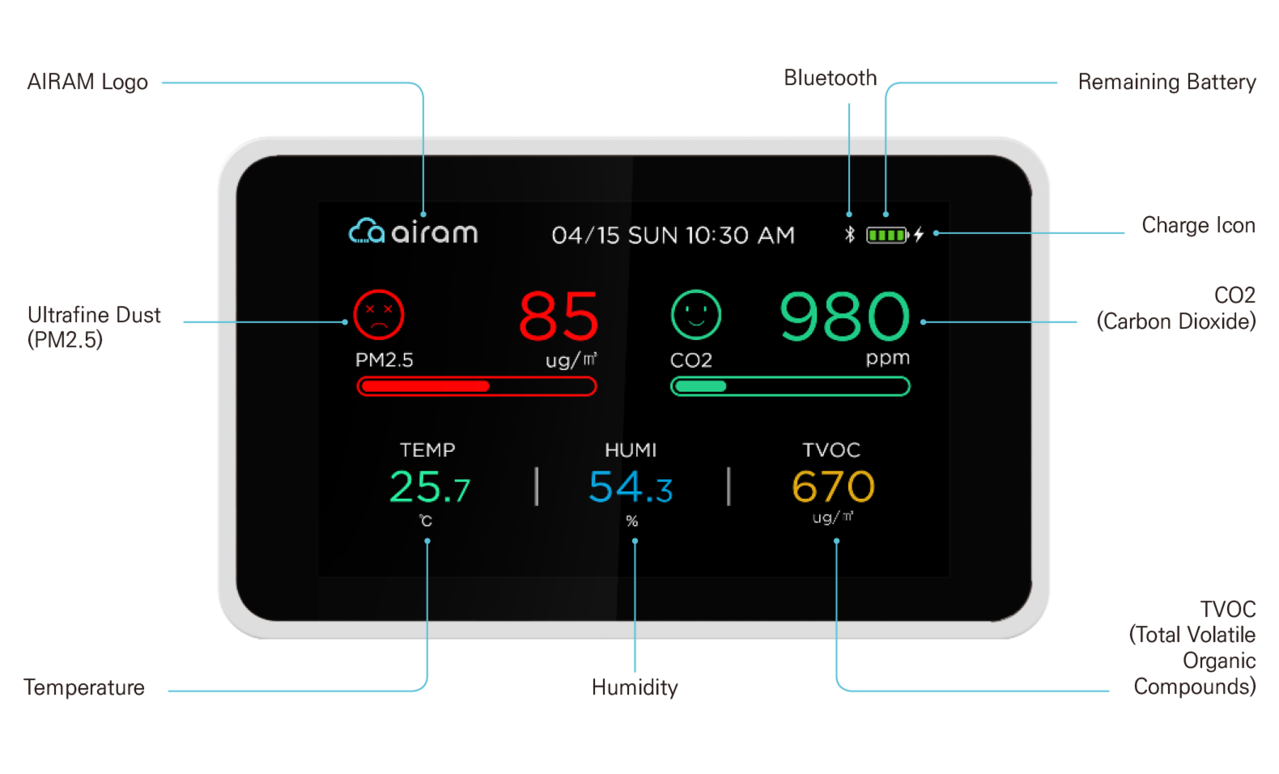

Screen Configuration

Display Description

Screen Configuration

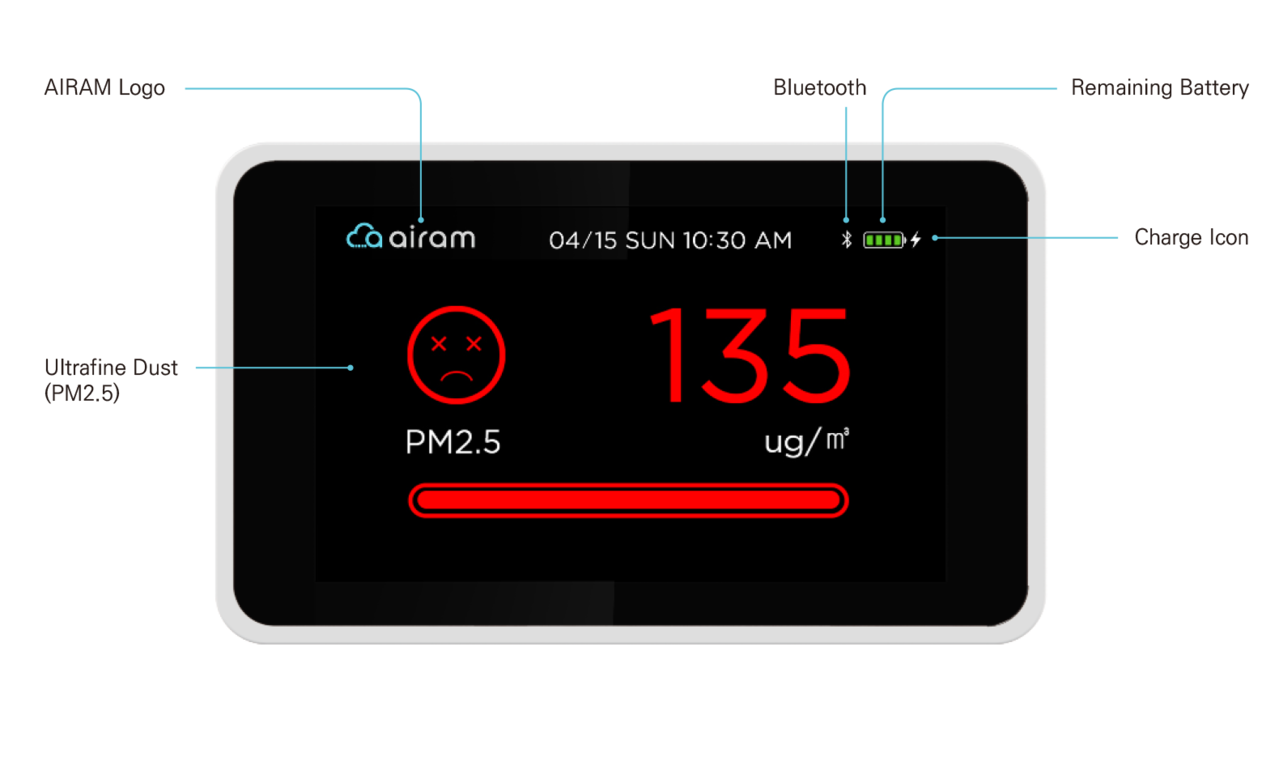

Screen Type 1

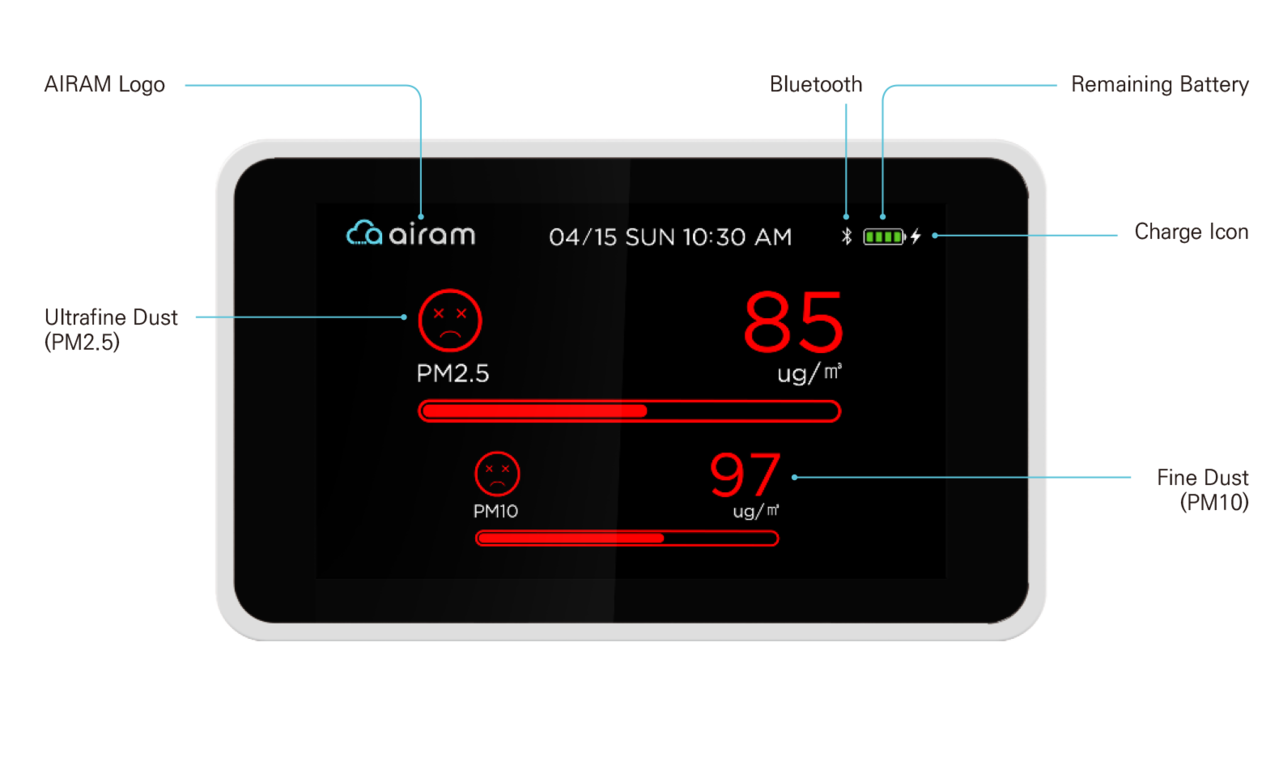

Screen Type 2

Screen Type 3

Screen Type 4

Display Description









SPECIFICATION

제품명AIRAM
Model No.(Model Name)SPA-501
Sensor-Detected Substances
Ultrafine Dust, Fine Dust, Carbon Dioxide(CO2), TVOC(Total Volatile Organic Compounds, Temperature, Humidity

Sensor Detection Range and Accuracy

Measurement MaterialMeasurement RangeAccuracy
Ultrafine Dust(PM2.5)
0~999㎍/㎥
0~100㎍/㎥: ±10㎍/㎥, 101~999㎍/㎥: ±10% reading
 Fine Dust(PM10)
0~999㎍/㎥
0~100㎍/㎥: ±10㎍/㎥, 101~999㎍/㎥: ±10% reading
 Carbon Dioxide(CO2)
0~5000ppm±(50ppm+ 5% of reading )
 TVOC(Total Volatile Organic Compounds
0~9999㎍/㎥
±25%
 Temperature
-9.9~ 99.9℃
±1℃(rating@0~80℃)
 Humidity
0~99.9%
±5% (rating@25℃)
 Supply Voltage
5Vdc ± 0.2V
Operating Temperature and Humidity
-10℃ ~ 50℃, 0 ~ 95%RH
Communication
BLE, RS485(Option)
Connector
Micro 5pin(Power and RS485)
Weight
163g
Size
112 X 68 X 30 (mm)
Charging Time
Around 2hours 20minutes(Power OFF)
Using Time
Around 3hours 25minutes
Manufacturer
SMARTLINE CO., LTD.
Company Name
SMARTLINE CO., LTD.
Country of Manufacture
Korea
