Airamdetectsfinedustparticles, CO2 and toxicchemicalsubstancesintheairusingitshigh-precisionsensors and smart algorithm.
Itportable, easytouse and usableinanycircumstances.
For a Quality Life
Airam for Your Space.
Airam detects fine dust particles, CO2 and toxic chemical substances in the air using its high-precision sensors and smart algorithm. It portable, easy to use and usable in any circumstances.

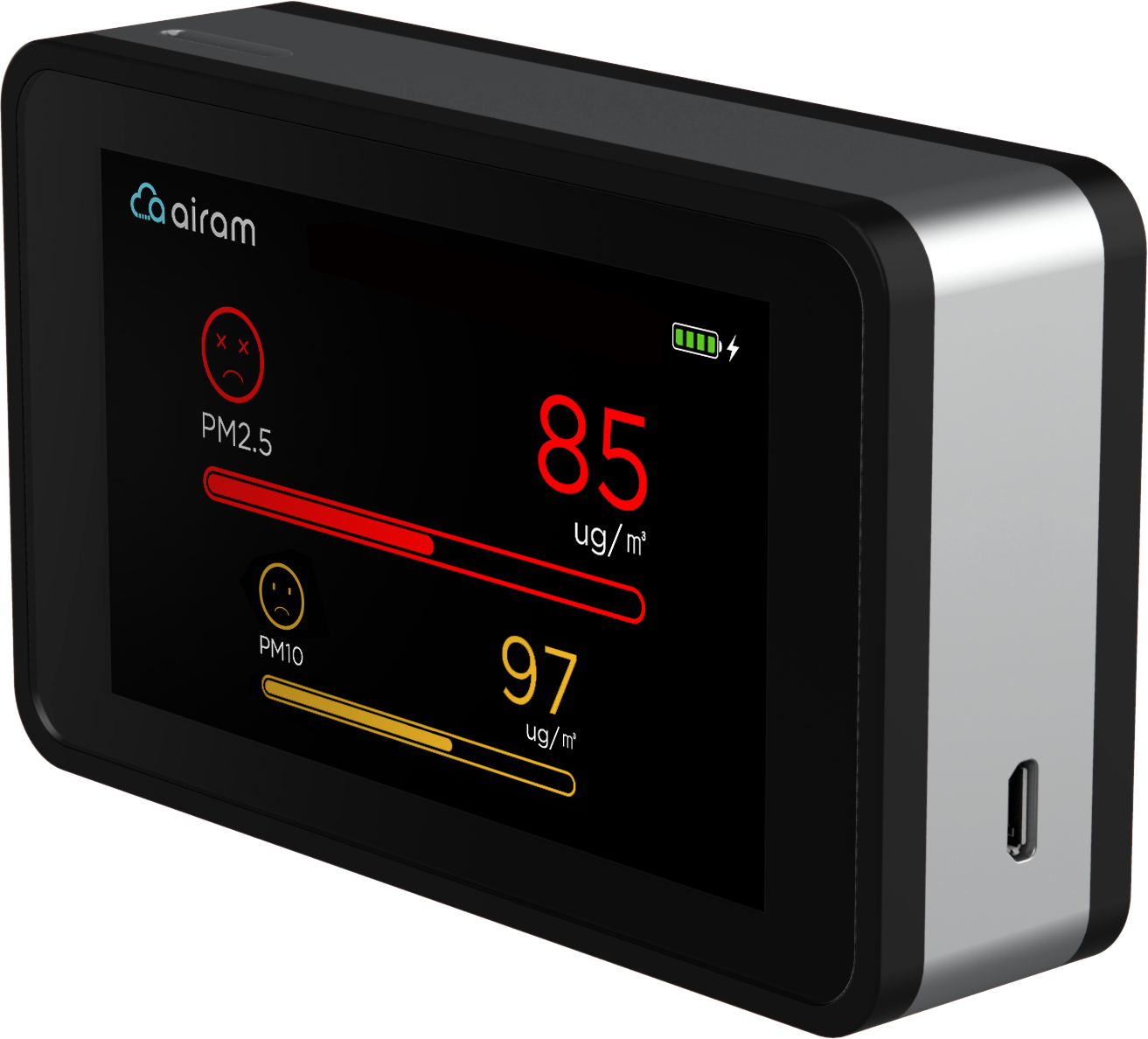

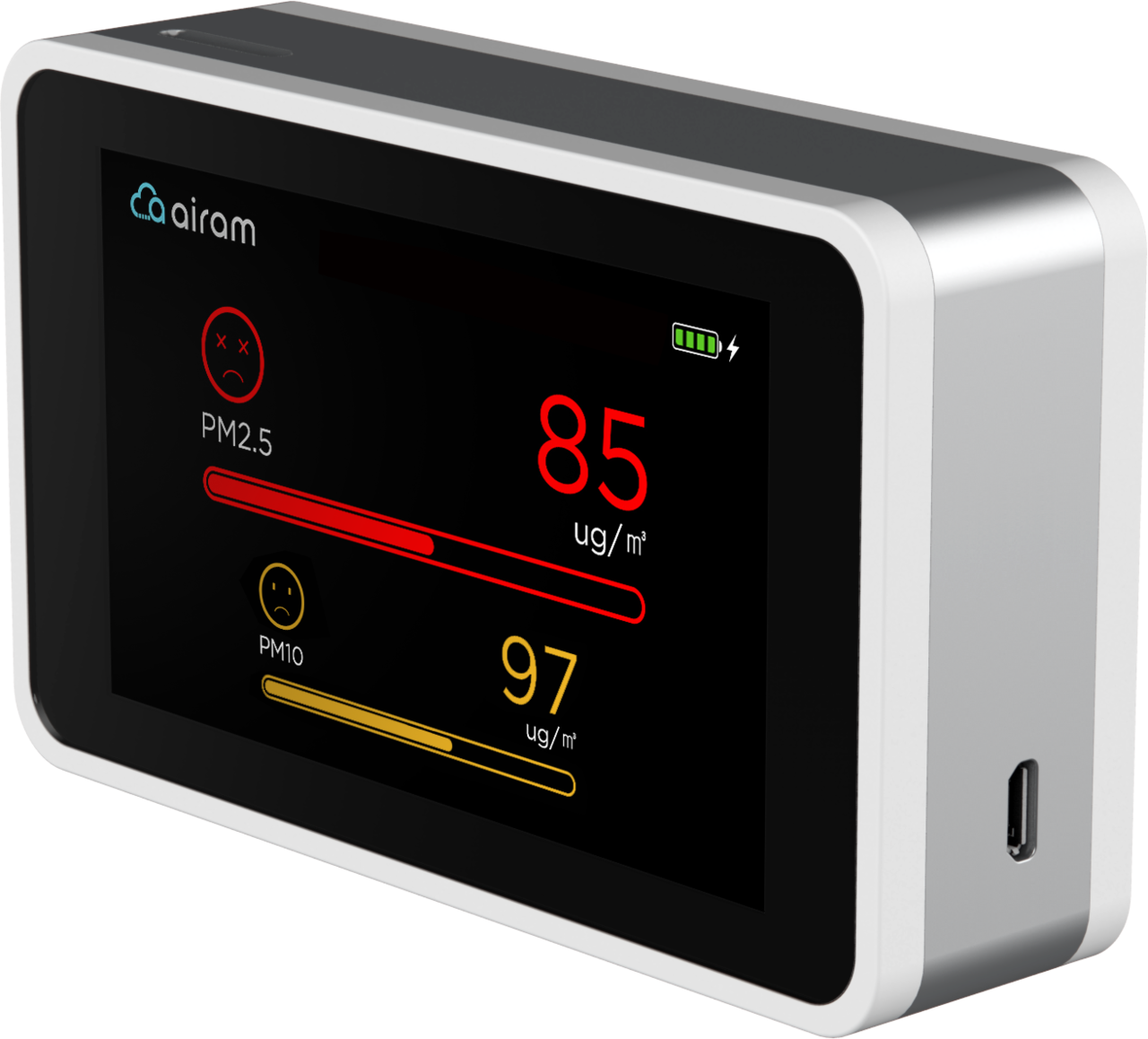

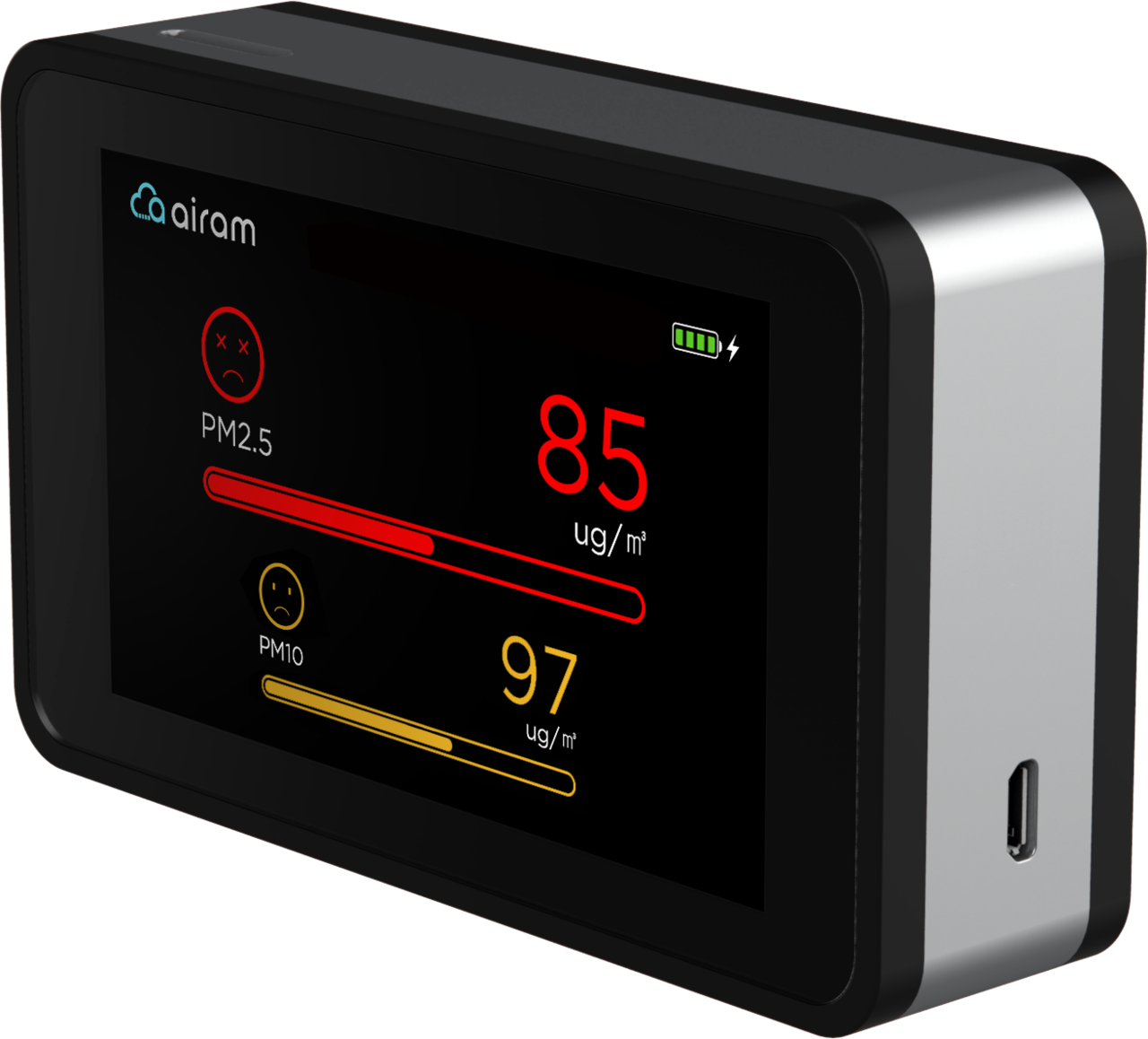

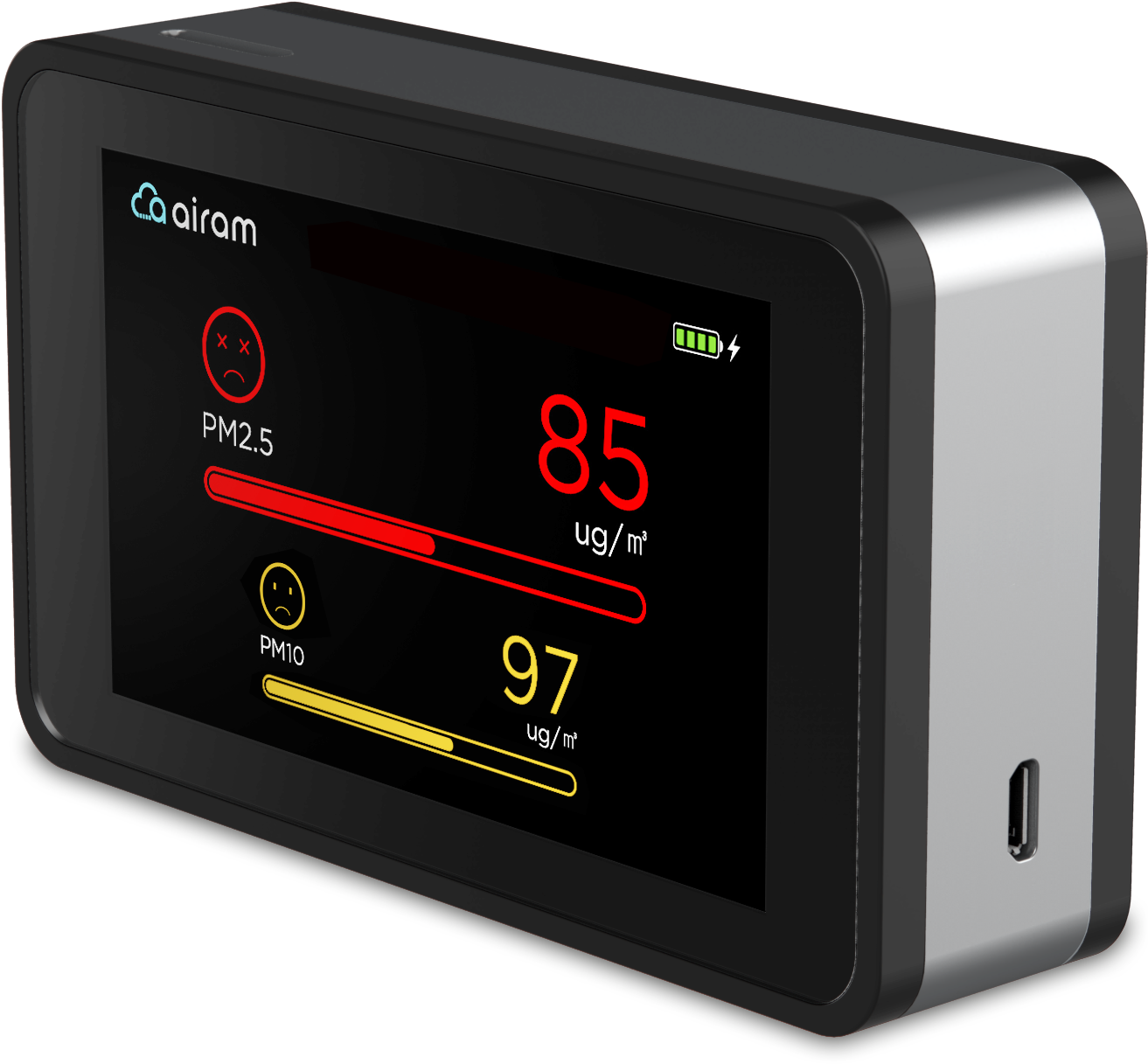

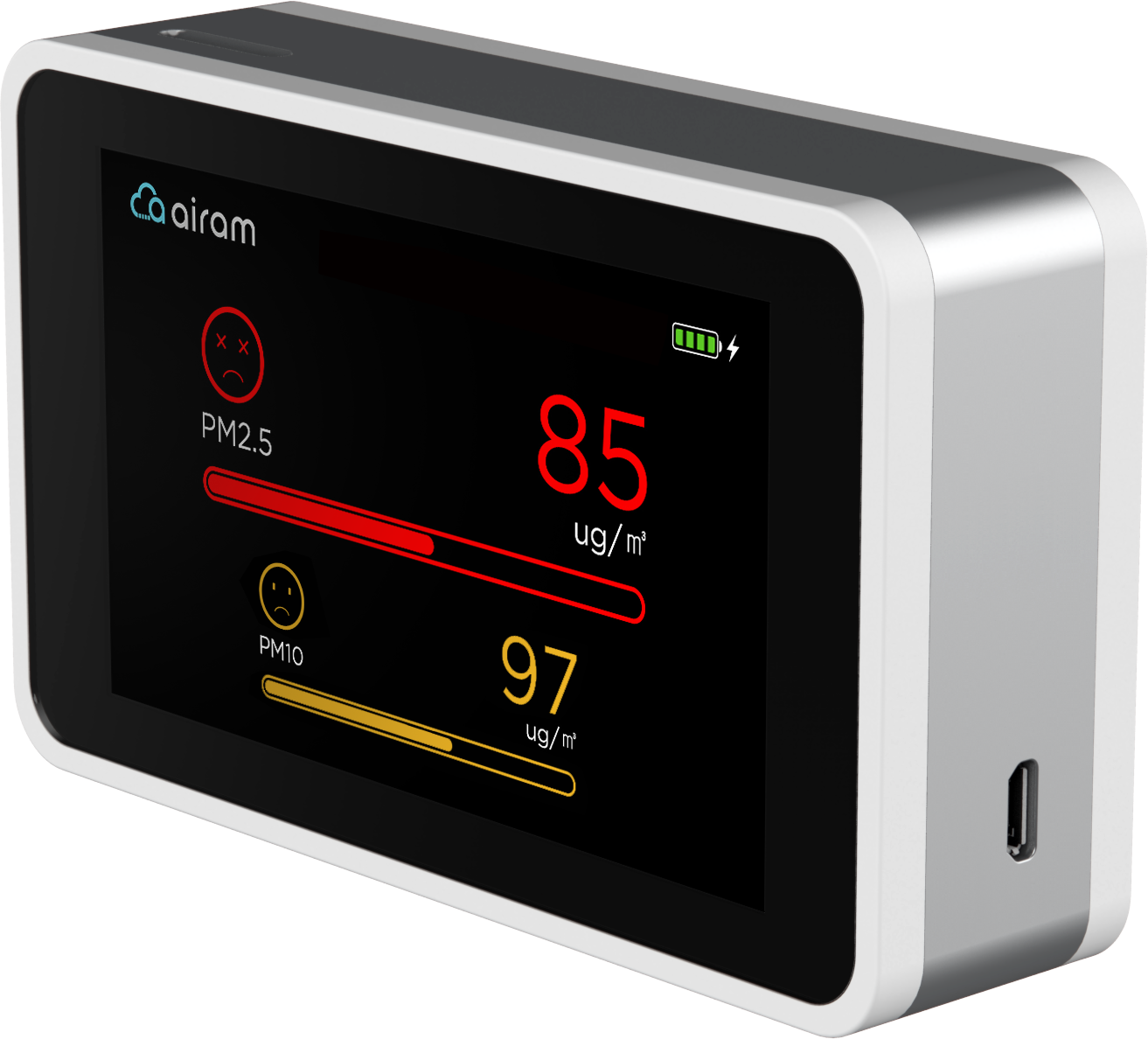

Model Line

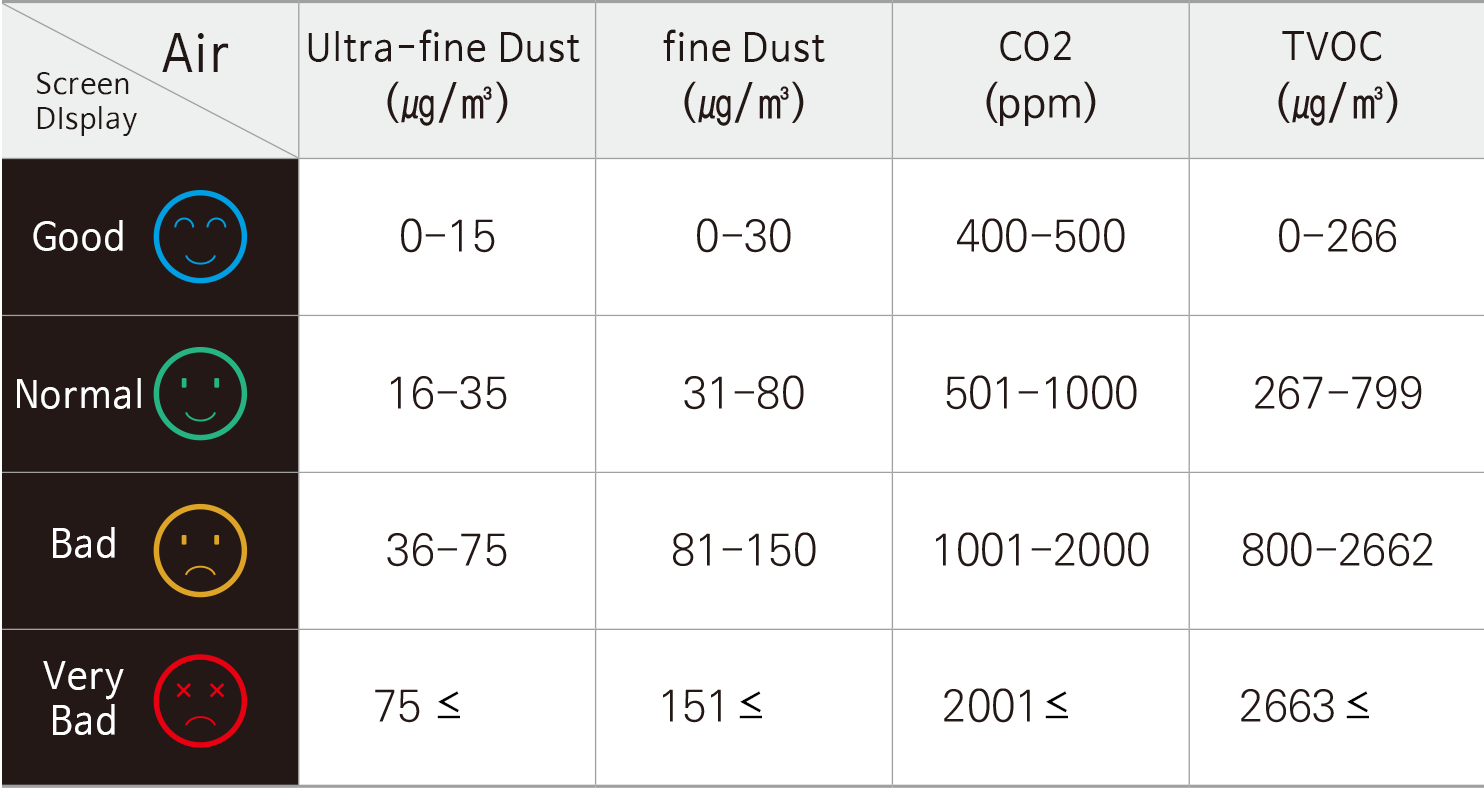

Airam shows the level of air quality in intuitive icons.
BLACK
WHITE
BLACK
WHITE
Product Parts Description
Screen Configuration
Display Description
Screen Configuration
Display Description
SPECIFICATION
제품명
AIRAM
Model No.(Model Name)
SPA-300
Sensor-Detected Substances
Ultrafine dust, Fine dust , Temperature, Humidity
Sensor Detection Range
and Accuracy
Measurement Material
Measurement Range
Accuracy
Ultrafine dust(PM2.5)
0~999㎍/㎥
0~100㎍/㎥: ±10㎍/㎥, 101~999㎍/㎥: ±10% reading
Fine dust(PM10)
0~999㎍/㎥
0~100㎍/㎥: ±10㎍/㎥, 101~999㎍/㎥: ±10% reading
Temperature
-9.9~ 99.9℃
±1℃(rating@0~80℃)
Humidity
0~99.9%
±5% (rating@25℃)
Supply Voltage
5Vdc±0.2V
Operating Temperature and Humidity
-10℃ ~ 50℃, 0 ~ 95%RH
Communication
Wifi, BLE, RS485(Option)
Connector
Micro 5pin(Power and RS485)
Weight
146g
Size
112 X 68 X 30 (mm)
Charging Time
Around 2hours 20minutes(Power OFF)
Using Time
Around 3hours 25minutes
Manufacturer
SMARTLINE CO., LTD.
Company Name
SMARTLINE CO., LTD.
Country of Manufacture
Korea
Certification
R-R-S15-SPA-300
