For a Quality Life
Airam for Your Space.

Airam detects fine dust particles,

CO2 and toxic chemical substances in the air using its high-precision sensors and smart It palgorithm.

ortable, easy to use and usable in any circumstances.



For a Quality Life

Airam for Your Space.

Airam detects fine dust particles, CO2 and toxic chemical substances in the air using its high-precision sensors and smart
It palgorithm. ortable, easy to use and usable in any circumstances.
MODEL LINE

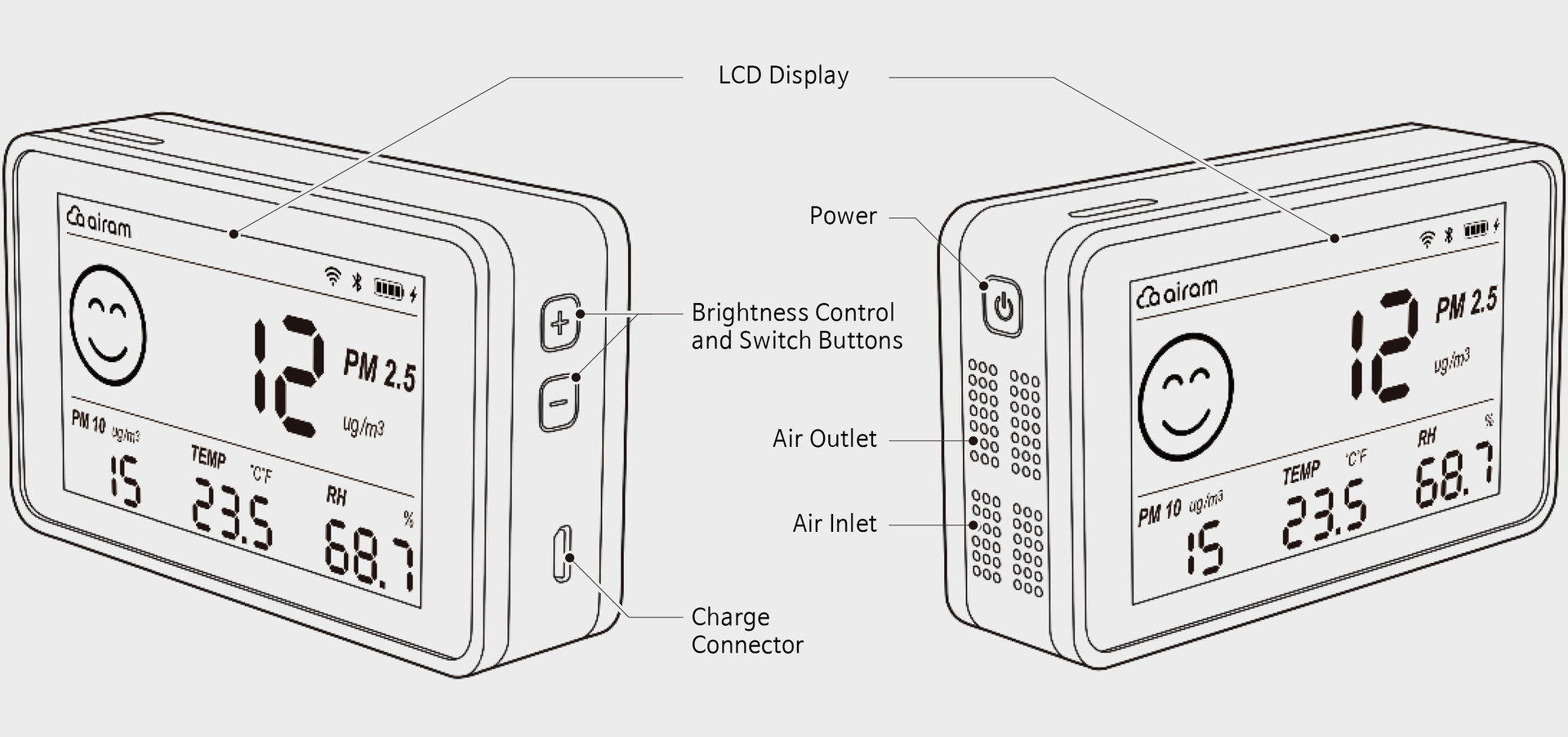

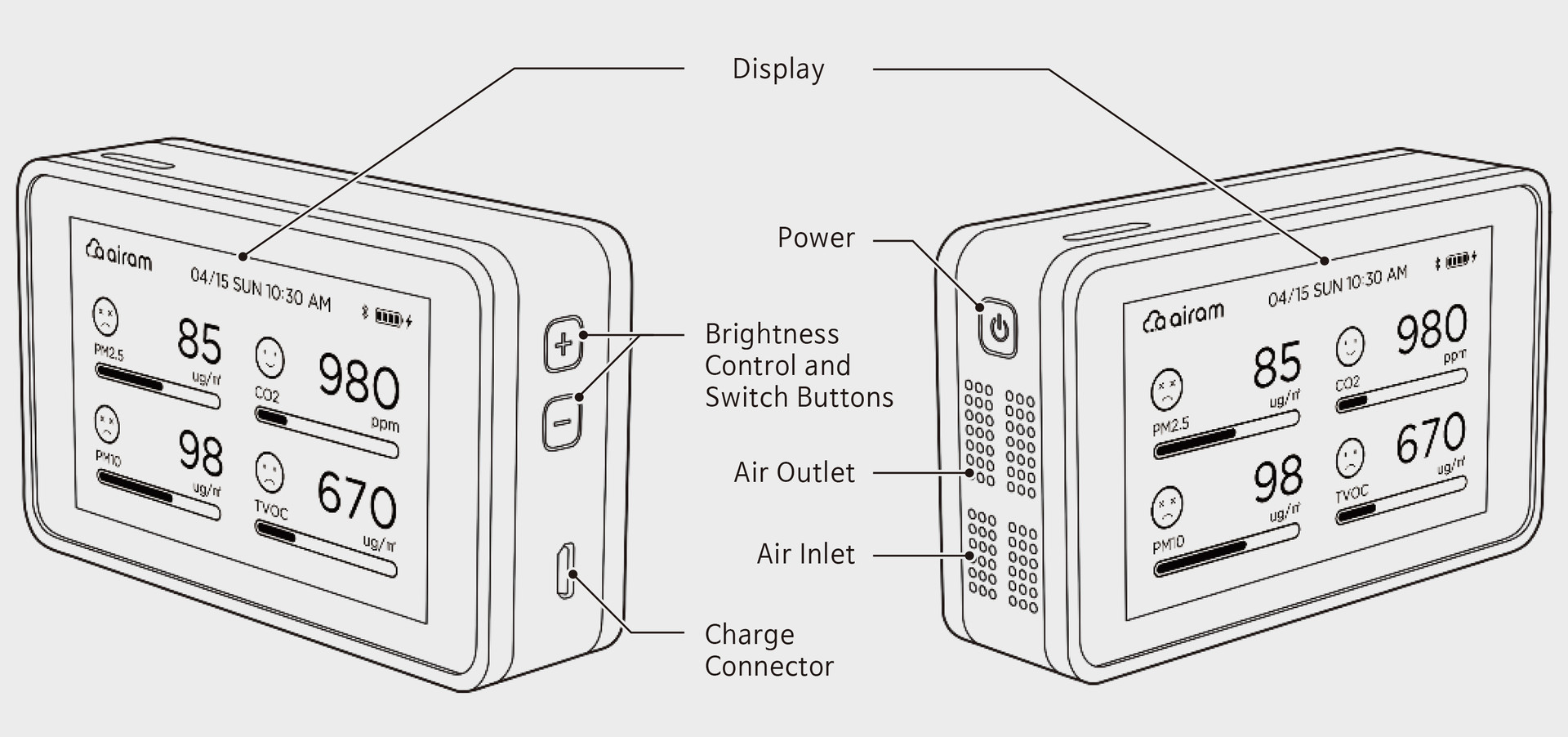

Product Parts Description

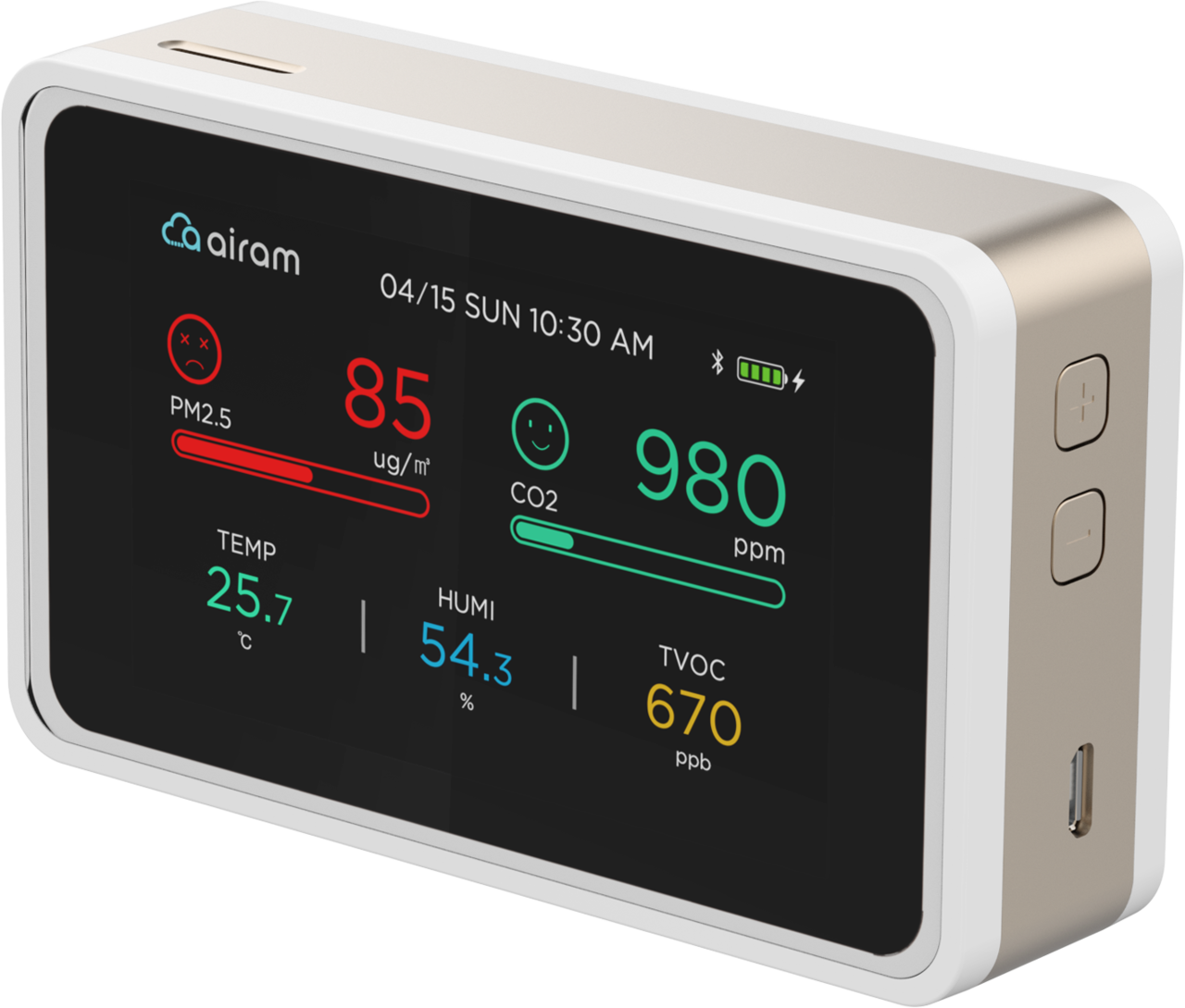

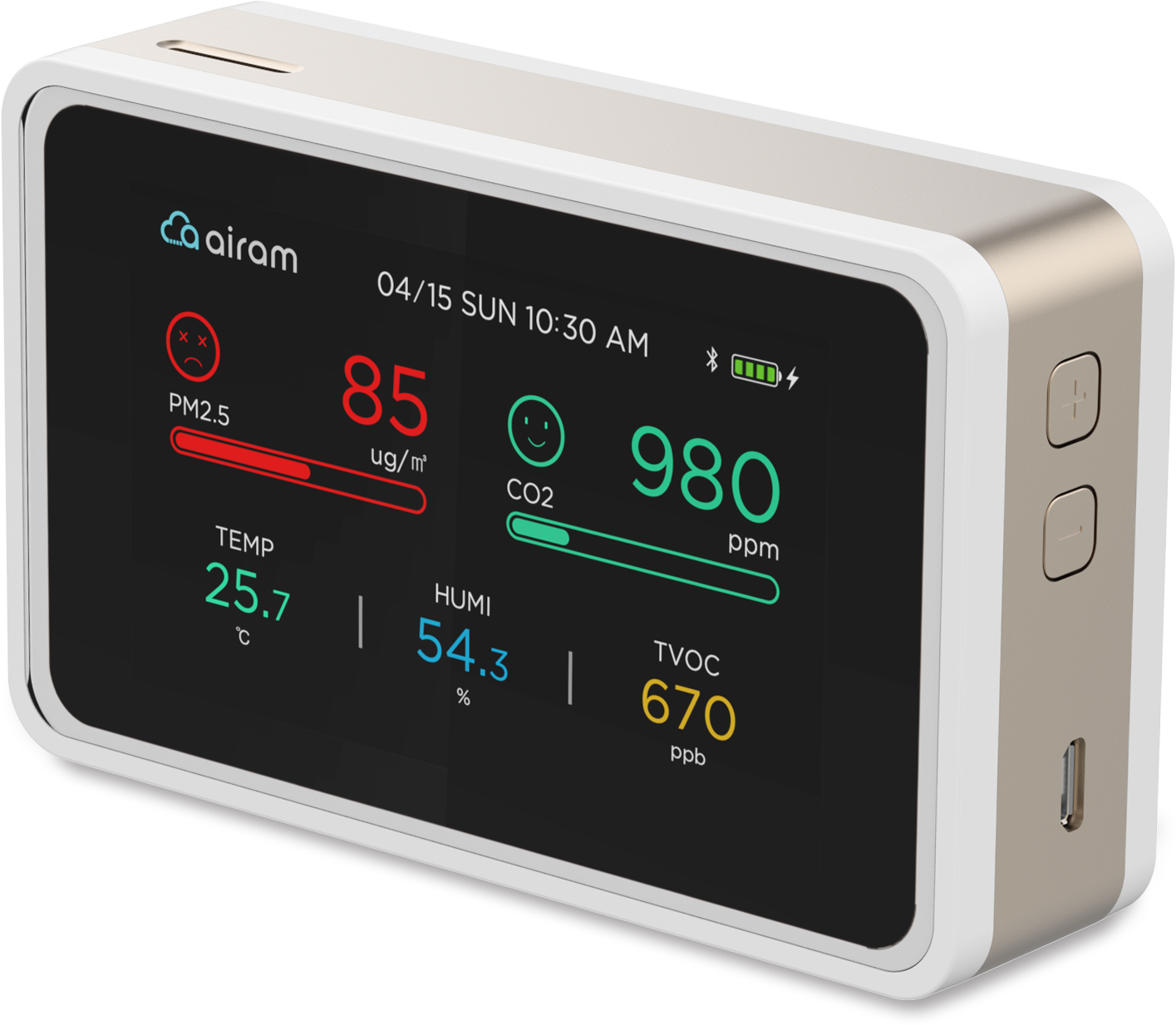

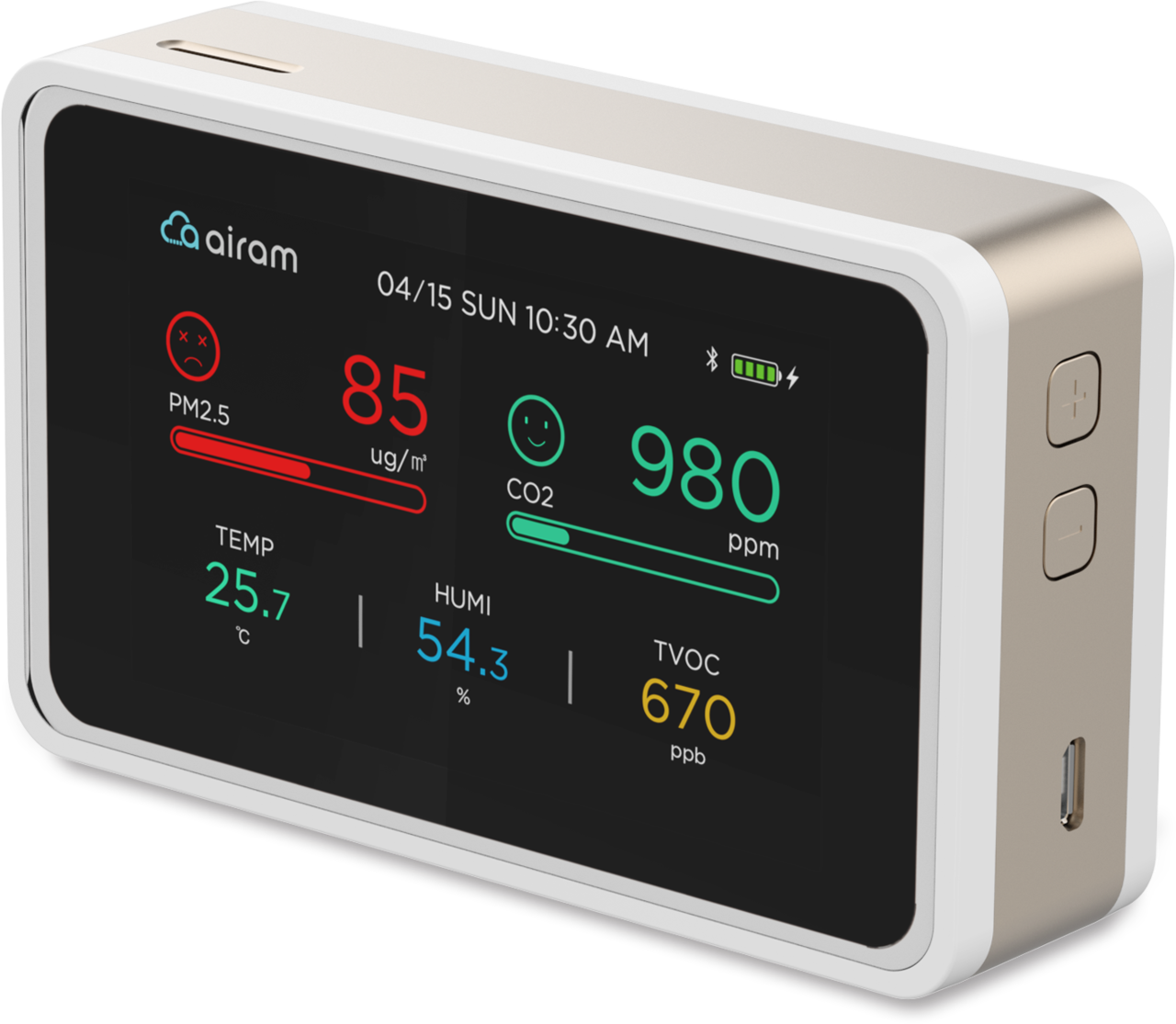

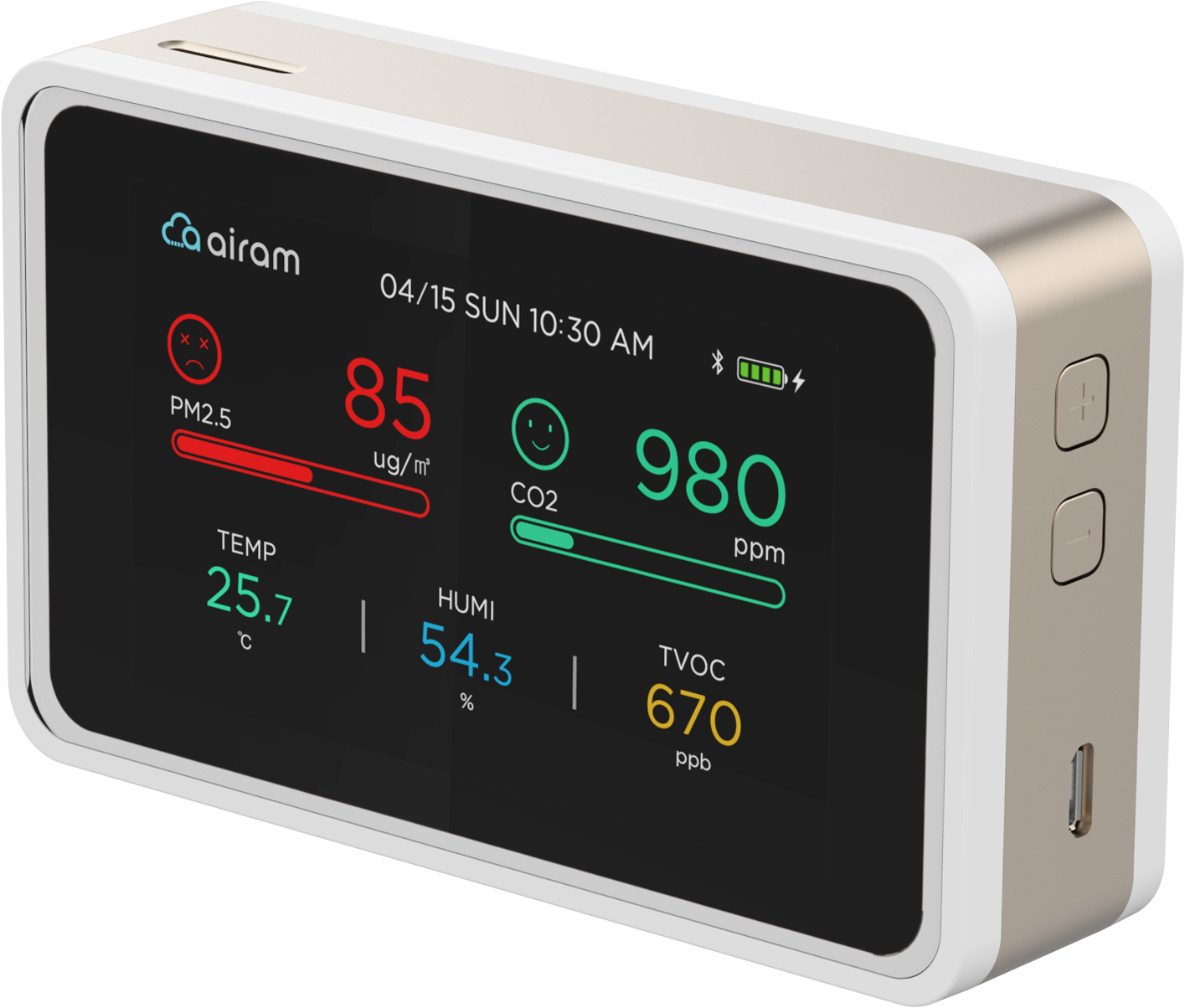

SAP-501

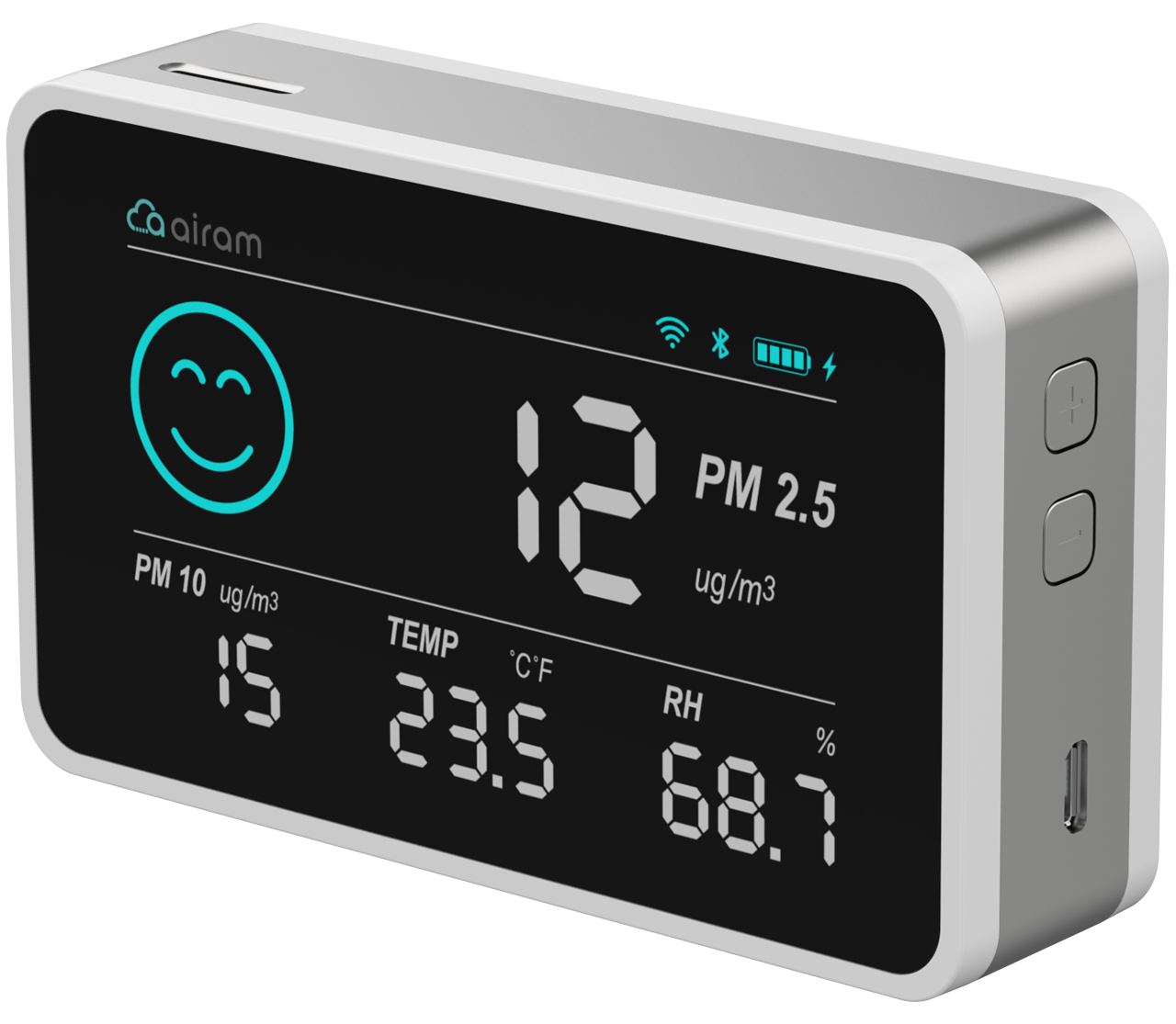

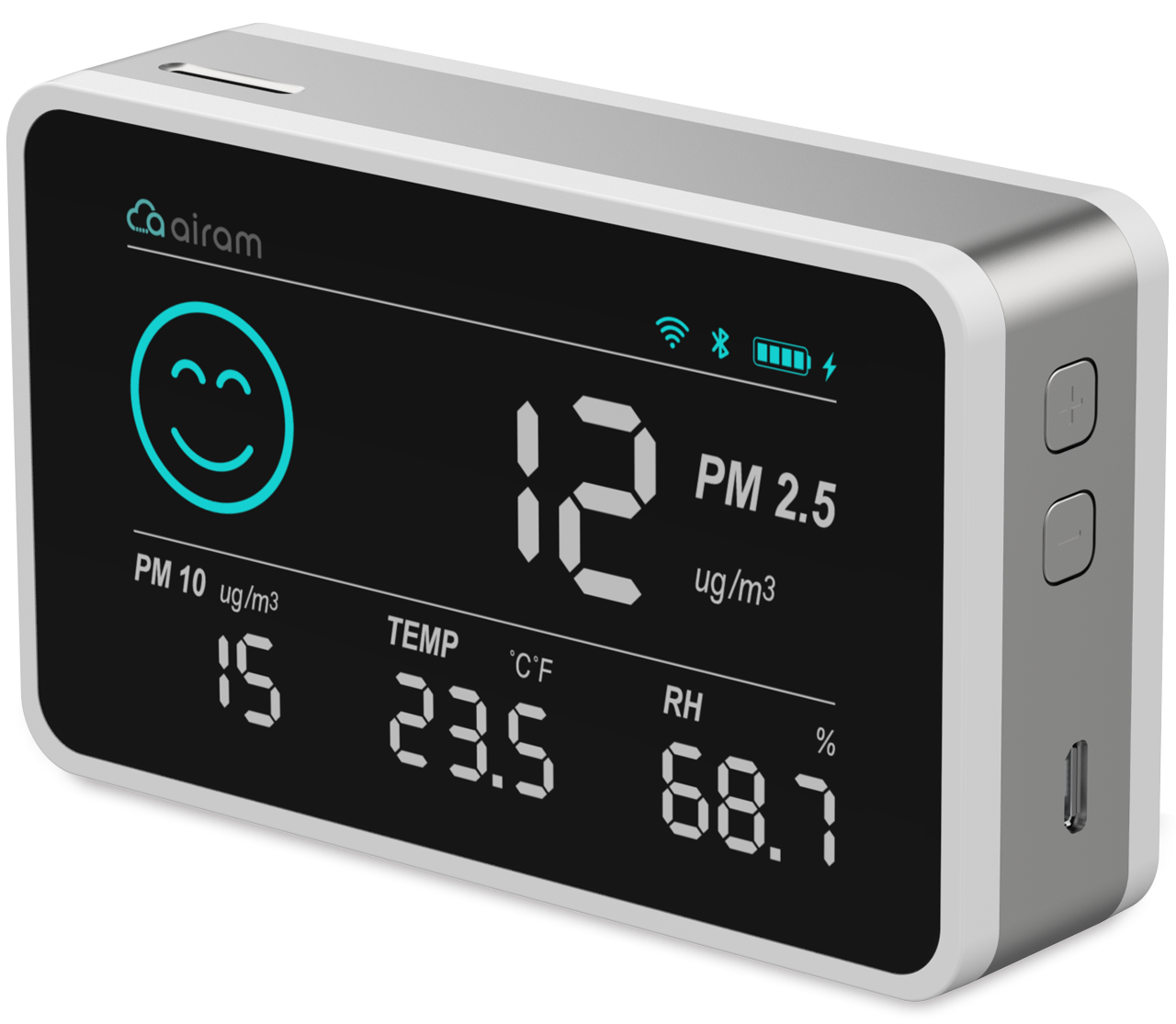

SAP-300

SAP-501 Screen Configuration

SAP-501 Display Description

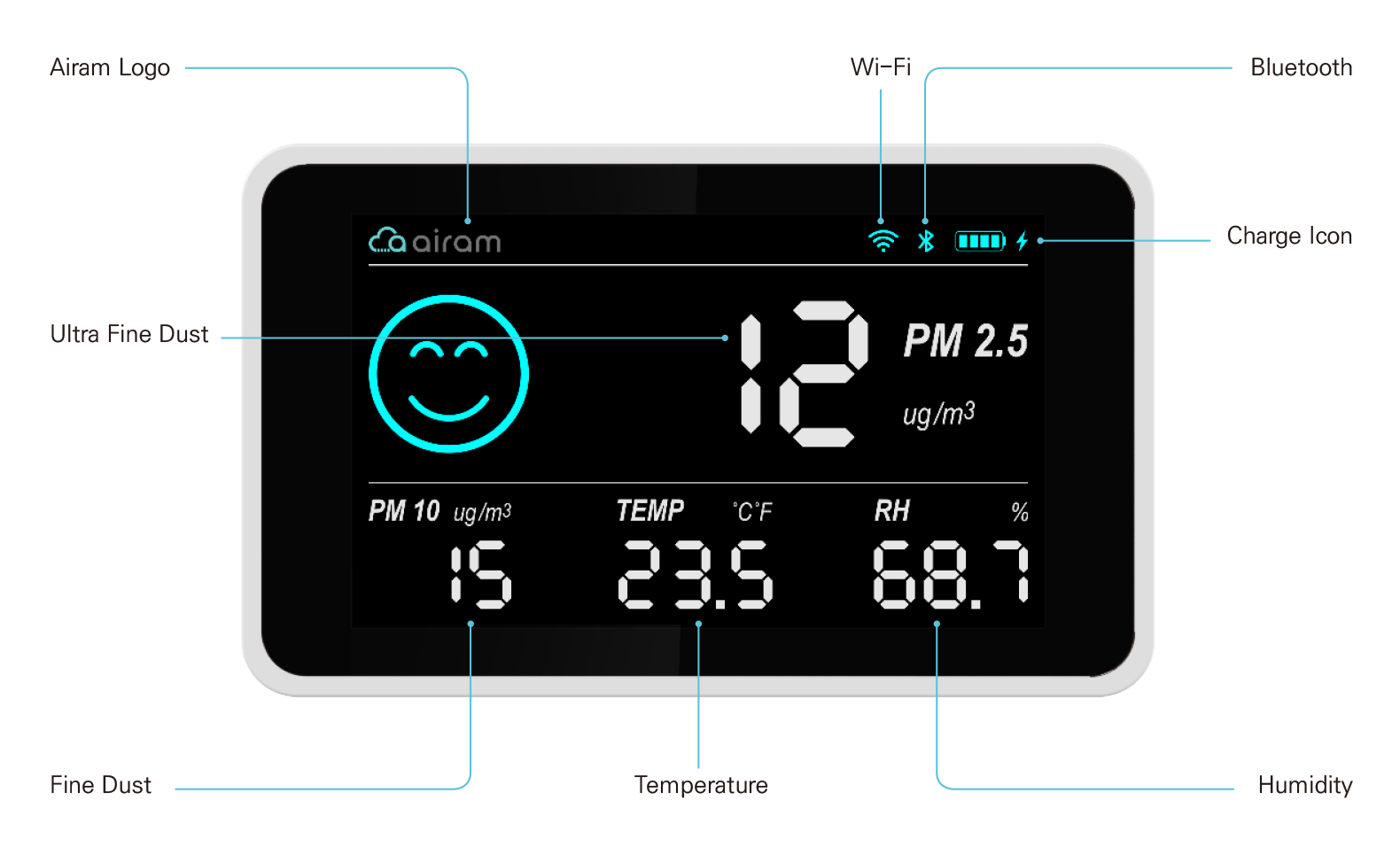

SAP-300 Screen Configuration

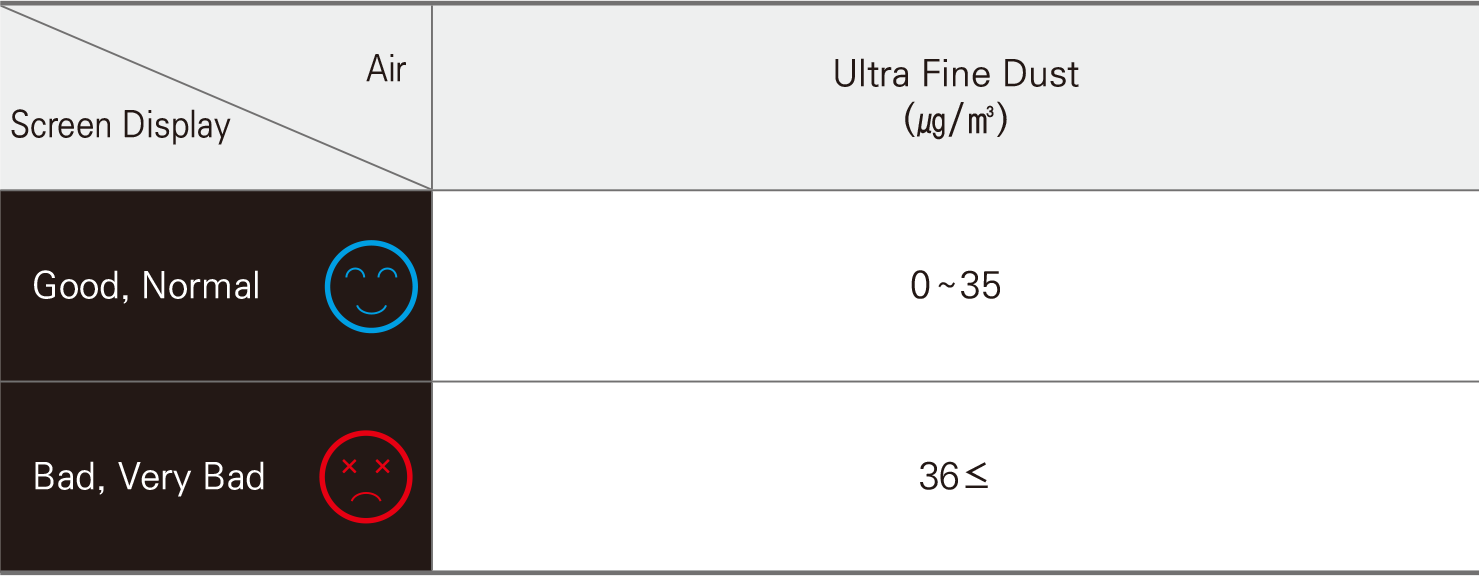

SAP-300 Display Description

SAP-501 Screen Configuration

SAP-501 Display Description










SAP-300 Screen Configuration




SAP-300 Display Description













SPECIFICATION

Product nameAir quality measuring device
Model No. (model name)SAP-501
ColorGold
Connector, power supply
- Micro 5pin(5Vdc±10%/1.5A) : Power and RS485

Sensor measurement range

&

Accuracy

ClassificationMeasuring rangeAccuracy
Ultrafine dust (PM2.5)
0~999㎍/㎥
0~100㎍/㎥: ±10㎍/㎥, 101~999㎍/㎥: ±10% reading 1)
Fine dust (PM10)
0~999㎍/㎥
0~100μg/m3 : ±25μg/m3, 101~999μg/m3 : ±25% reading
Carbon dioxide (CO2)
0~5000ppm±(50ppm ±5% of reading)
Hazardous chemicals (TVOC)
0~100Level (based on 0~10,000ppb)
± 15%
Temperature

-10℃~60℃ (Resolution 0.1℃)

±2℃
Humidity

0~99%RH (Resolution 0.1%)

±5% (@25℃)
Operating temperature and humidity
-10℃~60℃, 0~95%RH
Communication

- Wire communication: RS485

- Wireless communication: Wi-Fi (2.4GHz and 5GHz supported), BLE (Ver5.0)

Weight
146g
Size (W x H x D)
112 X 68 X 30 (mm)
Certification

- Standard certification (KC certification)

- Performance 1st grade certification for fine dust

Battery charging time and

usage time

- Charging time: About 2 hours and 20 minutes when the power is off

- Usage time : about 2 hours and 35 mins.

- Battery: Lithium ion, 1300 mAh 3.7 V

Manufacturer and distributor
Smart Line Co., Ltd.
Manufacturing country
Republic of Korea
Components
Product, manual, straight type cable (2m): USB A to Micoro 5 pin

1) % is the accuracy on the full scale, %reading is the accuracy on the read value, and the %reading value shows a more precise value.

Product name
Air quality measuring device
Model No. (model name)
SAP-300
Color
Silver
Connector, power supply
- Micro 5pin(5Vdc±10%/1.5A) : Power and RS485

Sensor measurement range

&

Accuracy

Classification
측정범위정확도
Ultrafine dust(PM2.5)
0~999㎍/㎥
0~100μg/m3 : ±10μg/m3, 101~999μg/m3 : ±10% reading 1)
Fine dust(PM10)
0~999㎍/㎥
0~100μg/m3 : ±25μg/m3, 101~999μg/m3 : ±25% reading
Temperature

-10℃~60℃ (Resolution 0.1℃)

±2℃
Humidity

0~99%RH (Resolution 0.1%)

±5% (@25℃)
Operating temperature and humidity
-10℃~60℃, 0~95%RH
Communication

- Wire communication: RS485

- Wireless communication: Wi-Fi (2.4GHz and 5GHz supported), BLE (Ver5.0)

Weight
146g
Size (W x H x D)
112 X 68 X 30 (mm)
Certification

- Standard certification (KC certification)

- Performance 1st grade certification for fine dust

Battery charging time and usage time

- Charging time: About 2 hours and 20 minutes when the power is off

- Usage time: max. 3 hours and 25 minutes

- Battery: Lithium ion, 1300 mAh 3.7 V

Manufacturer and distributor
Smart Line Co., Ltd.
Manufacturing country
Republic of Korea
Components
Product, manual, straight type cable (2m): USB A to Micoro 5 pin

1) % is the accuracy on the full scale, %reading is the accuracy on the read value, and the %reading value shows a more precise value.
