ABOUT AIRAM

Airam is a safe, reliable products developed

with Smartline’s original technologies.

ABOUT AIRAM
For a Quality Life
Airam for Your Space.

Airam detects fine dust particles,

CO2 and toxic chemical substances in the air using its high-precision sensors and smart It palgorithm.

ortable, easy to use and usable in any circumstances.

For a Airam Life

Airam for Your Space.

Airam detects fine dust particles, CO2 and toxic chemical substances in the air using its high-precision sensors and smart
It palgorithm. ortable, easy to use and usable in any circumstances.

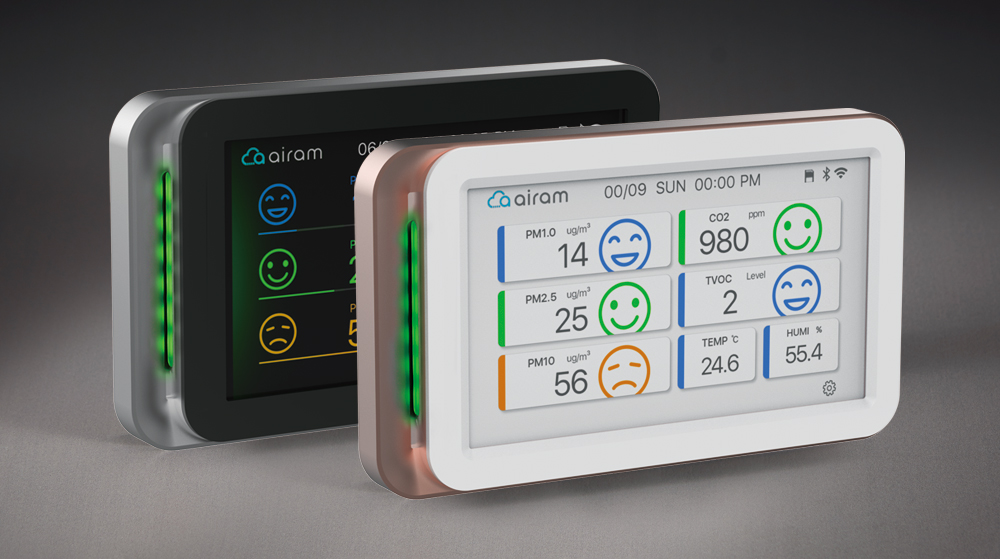

MODEL LINE
COLOR LINE

Black+Gray

White+Rosegold

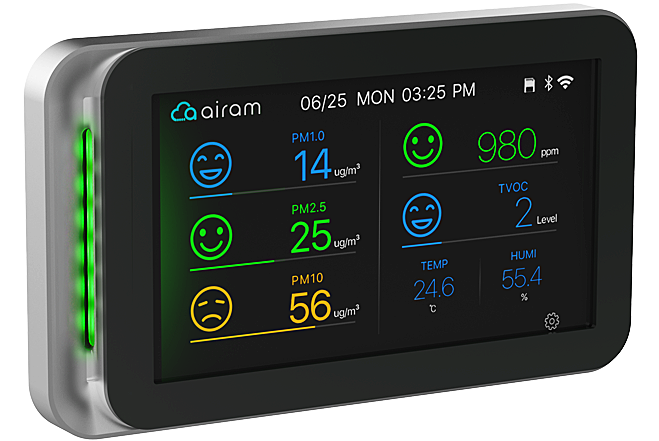

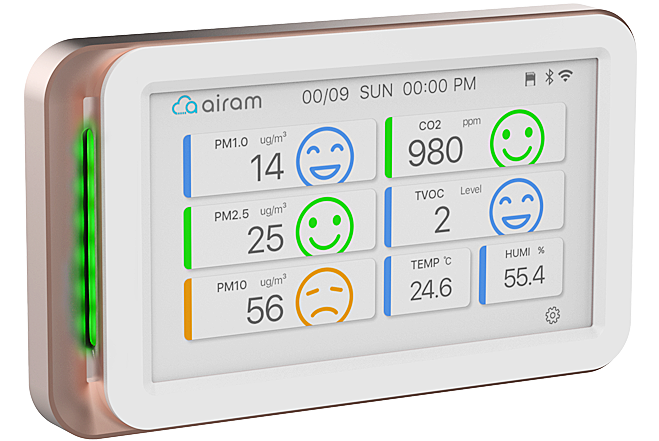

Minimal Round Edge Design

Airam not only offers accurate air quality measurements but its simple and modern design fits into any space.

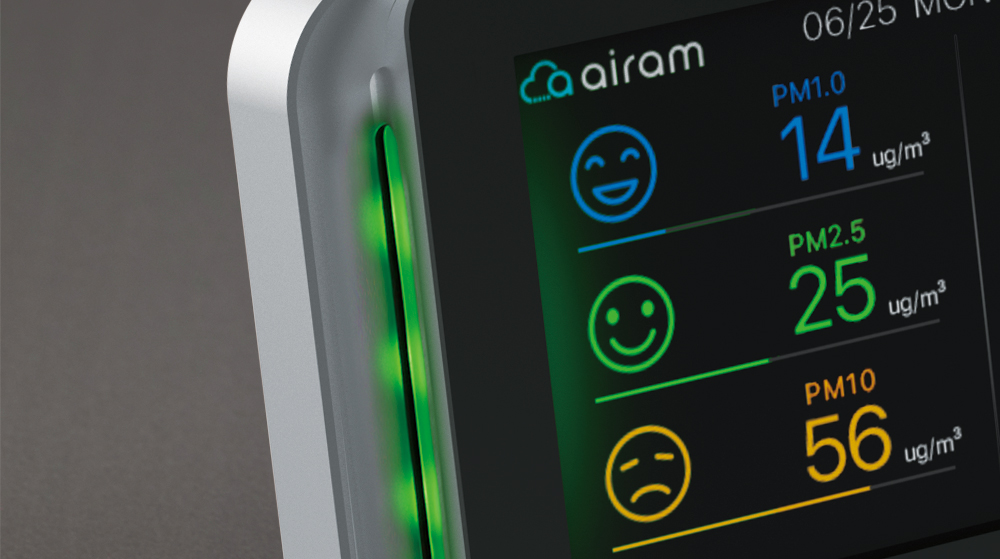

Intuitive Signal Lighting

The Signal Lighting in the left corner shows the fine dust levels in four colors.

High-Precision Sensor that Detects Even Ultra-Fine Particulate Matter

Using a laser scattering technology, Airam detects 0.3~10㎛ particulates with high precision. Instead of showing converted values, Airam show actual particulate levels in real-time.

- Ultra Fine Particulate (PM1.0), Fine Particulate (PM2.5), Coarse Particulate Matter (PM10)

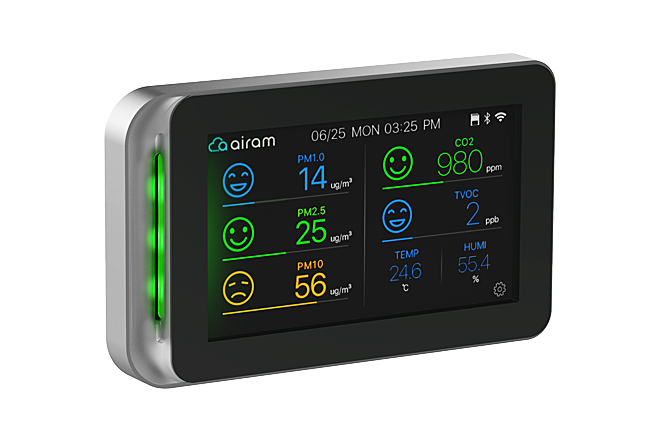

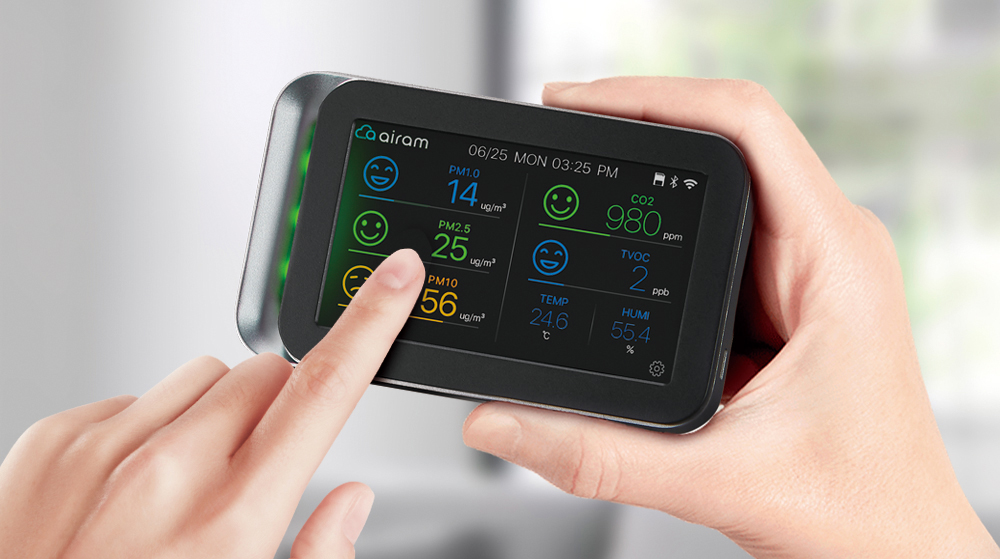

User-Centered Design

The LCD touch screen with minimal buttons and simple, intuitive UI allow you to monitor air quality right away.

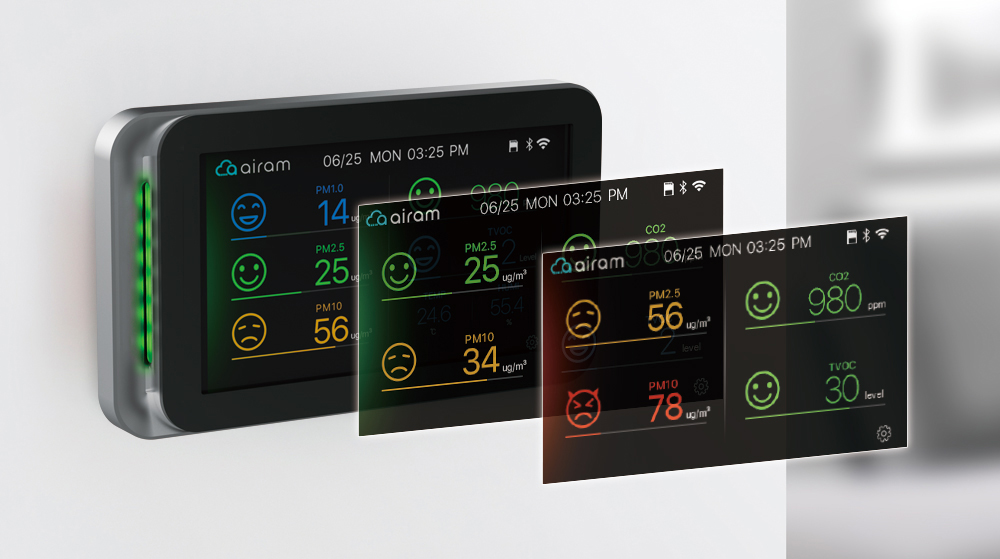

Various Screen Modes

Airam offers multiple screen modes you could switch between (particulate matter, CO2, etc).

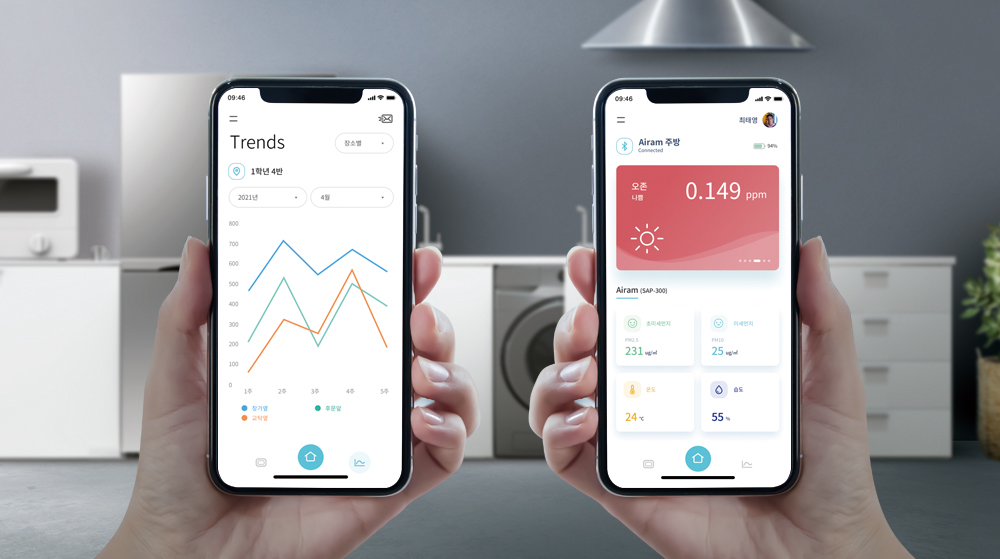

Enhanced IoT System

Airam uses it own cloud server and app to manage air quality data and air monitoring system.

Minimal Round

Edge Design

Airam not only offers accurate air quality measurements but its simple and modern design fits into any space.

Intuitive

Signal Lighting

The Signal Lighting in the left corner shows

the fine dust levels in four colors.

High-Precision Sensor that Detects Even Ultra-Fine Particulate Matter

Using a laser scattering technology, Airam detects 0.3~10㎛ particulates with high precision. Instead of showing converted values, Airam show actual particulate levels in real-time.

- Ultra Fine Particulate (PM1.0), Fine Particulate (PM2.5), Coarse Particulate Matter (PM10)

User-Centered Design

The LCD touch screen with minimal buttons and simple, intuitive UI allow you to monitor air quality right away.

Various Screen Modes

Airam offers multiple screen modes you could switch between (particulate matter, CO2, etc).

Enhanced IoT System

Airam uses it own cloud server and app to manage

air quality data and air monitoring system.

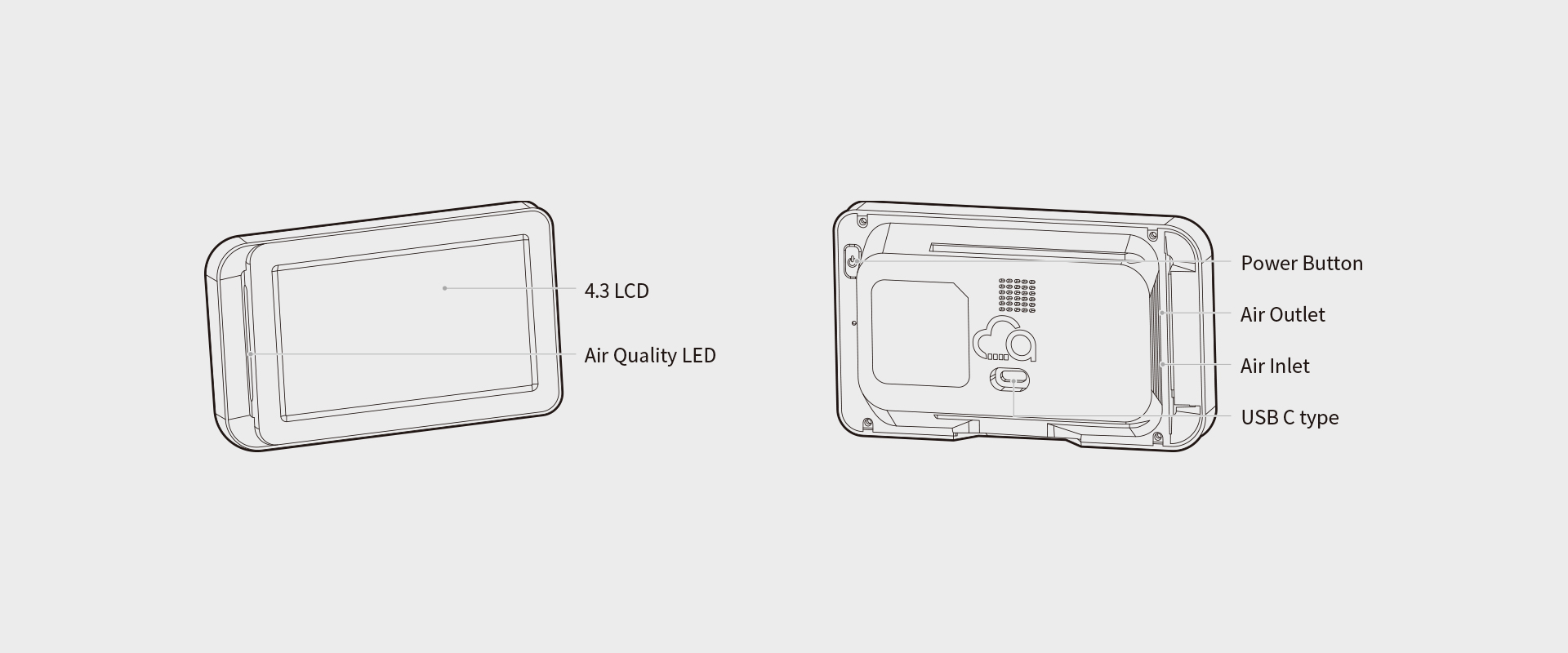

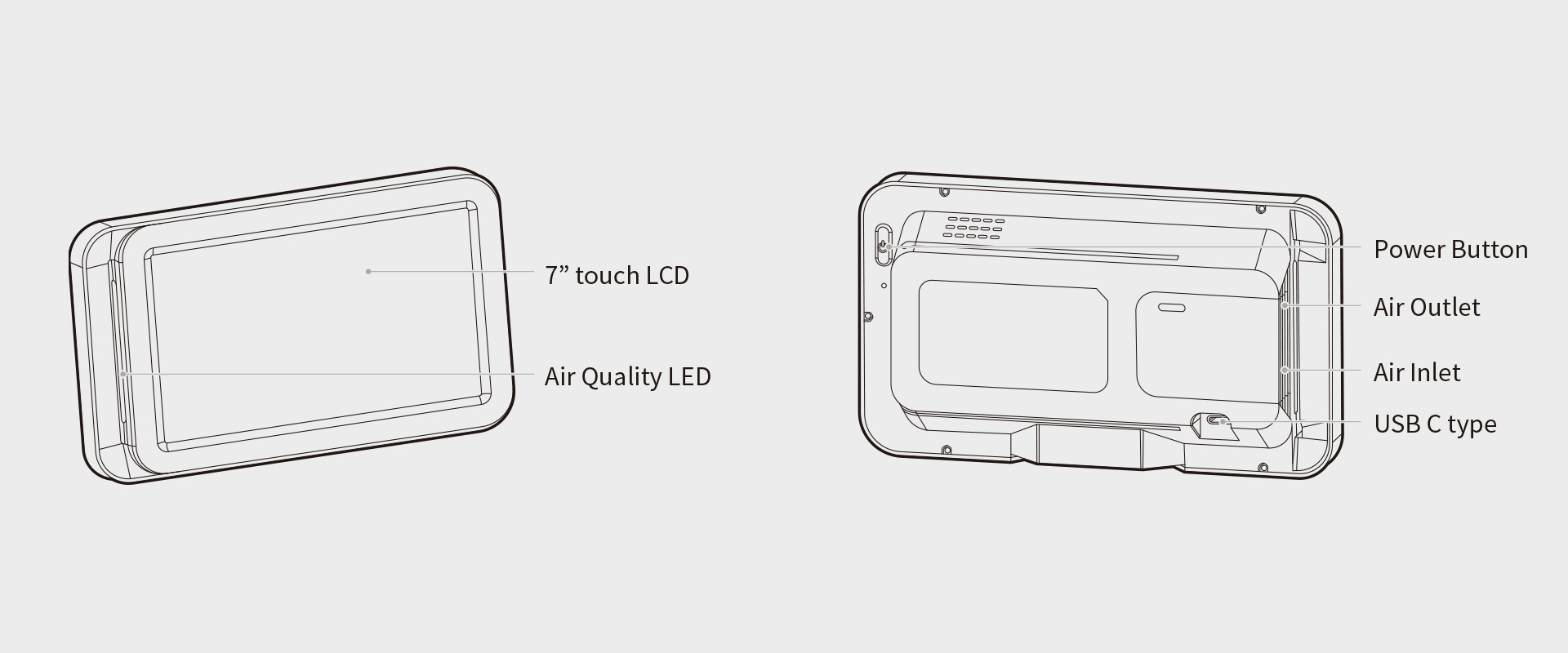

Product Parts Description
SAP-500E
SAP-700E
SPECIFICATION
Product name
Air quality measuring device
Model No. (model name)
SAP-500E
ColorBlack+Gray, White+Rosegold
Connector, power supply

- USB C type (5Vdc±10% / 1.5A)

- Terminal block (24V±5%): Power and RS485

Sensor measurement range

&

Accuracy


Classification
Measuring range
Accuracy

Ultrafine dust (PM1.0)

0~5,000 μg/m3 (Resolution 1 μg/m3)

0~100μg/m3 : ±10μg/m3
101~500μg/m3 : ±10%reading 1)

Ultrafine dust (PM2.5)

0~5,000 μg/m3 (Resolution 1 μg/m3)

0~100μg/m3 : ±10μg/m3
101~500μg/m3 : ±10%reading

Fine dust (PM10)

0~5,000 μg/m3 (Resolution 1 μg/m3)

0~100μg/m3 : ±25μg/m3
101~500μg/m3 : ±25%reading
Carbon dioxide (CO2)
0~5000ppm±(50ppm+ 5% of reading )
Hazardous chemicals (TVOC)
0~100Level (based on 0~10,000ppb)
±15%
Temperature

Resolution -10℃~60℃0.1℃)

±2℃
Humidity

0~99%RH (Resolution 0.1%)

±5% (@25℃)
Operating temperature and humidity
-10℃~60℃, 0~95%RH
Communication

- Wire communication: RS485

- Wireless communication: Wi-Fi (2.4GHz and 5GHz supported), BLE (Ver5.0)

Weight
204g
Size (W * H * D)
133 x 80 x 24(mm)
Certification

- Standard certification (KC certification)

- Performance 1st grade certification for fine dust

Battery charging time and usage time

- Charging time: About 2 hours and 20 minutes when the power is off

- Usage time: max. 2 hours

- Battery: Lithium ion, 1300 mAh 3.7 V (*Battery sold separately.)

Manufacturer and distributor
Smart Line Co., Ltd.
Manufacturing country
Republic of Korea
Components

Product, manual, stand bracket + straight cable

* Sold separately: battery, wall bracket + right-angle cable

* Straight cable (2m): USB A to C Type, right-angle cable (2m): USB A to C Angle Type

1) % is the accuracy on the full scale, %reading is the accuracy on the read value, and the %reading value shows a more precise value.

Product name
Air quality measuring device
Model No. (model name)
SAP-700E
Color
 Black+Gray, White+Rosegold
Connector, power supply

- USB C type (5Vdc±10% / 1A)

- Terminal block (24V±5%): Power and RS485

- RJ45 : Ethernet

Sensor measurement range

&

Accuracy


Classification
Measuring range
Accuracy

Ultrafine dust (PM1.0)

0~5,000 μg/m3 (Resolution 1 μg/m3)

0~100μg/m3 : ±10μg/m3
101~500μg/m3 : ±10%reading 1)

Ultrafine dust (PM2.5)

0~5,000 μg/m3 (Resolution 1 μg/m3)

0~100μg/m3 : ±10μg/m3
101~500μg/m3 : ±10%reading

Fine dust (PM10)

0~5,000 μg/m3 (Resolution 1 μg/m3)

0~100μg/m3 : ±25μg/m3
101~500μg/m3 : ±25%reading
Carbon dioxide (CO2)
0~5000ppm±(50ppm+ 5% of reading )
Hazardous chemicals (TVOC)

0~100Level (based on 0~10,000ppb)

±15%
Temperature

-10℃~60℃ (Resolution 0.1℃)

±2℃
Humidity

0~99%RH (Resolution 0.1%)

±5% (@25℃)
Operating temperature and humidity
-10℃~60℃, 0~95%RH
Communication

- Wire communication : RS485, Ethernet

-Wireless communication : support for Wi-Fi(2.4GHz & 5GHz),
BLE(Ver5.0)

weight
464g
Size (W * H * D)
202 x 116 x 36(mm)
Manufacturer and distributor
Smart Line Co., Ltd.
Manufacturing country
Republic of Korea
Components

Product, manual, stand bracket + straight cable

* Sold separately: wall bracket + right-angle cable

* Straight cable (2m): USB A to C Type, right-angle cable (2m): USB A to C Angle Type

1) % is the accuracy on the full scale, %reading is the accuracy on the read value, and the %reading value shows a more precise value.
