For a Quality Life
Airam for Your Space.

Airam detects particulate matter,

CO2 and toxic chemical substances

in the air using its high-precision sensor and

smart algorithm.


For a Airam Life

Airam for Your Space.

Airam detects particulate matter, CO2 and toxic chemical substances
in the air using its high-precision sensor and smart algorithm.
MODEL LINE

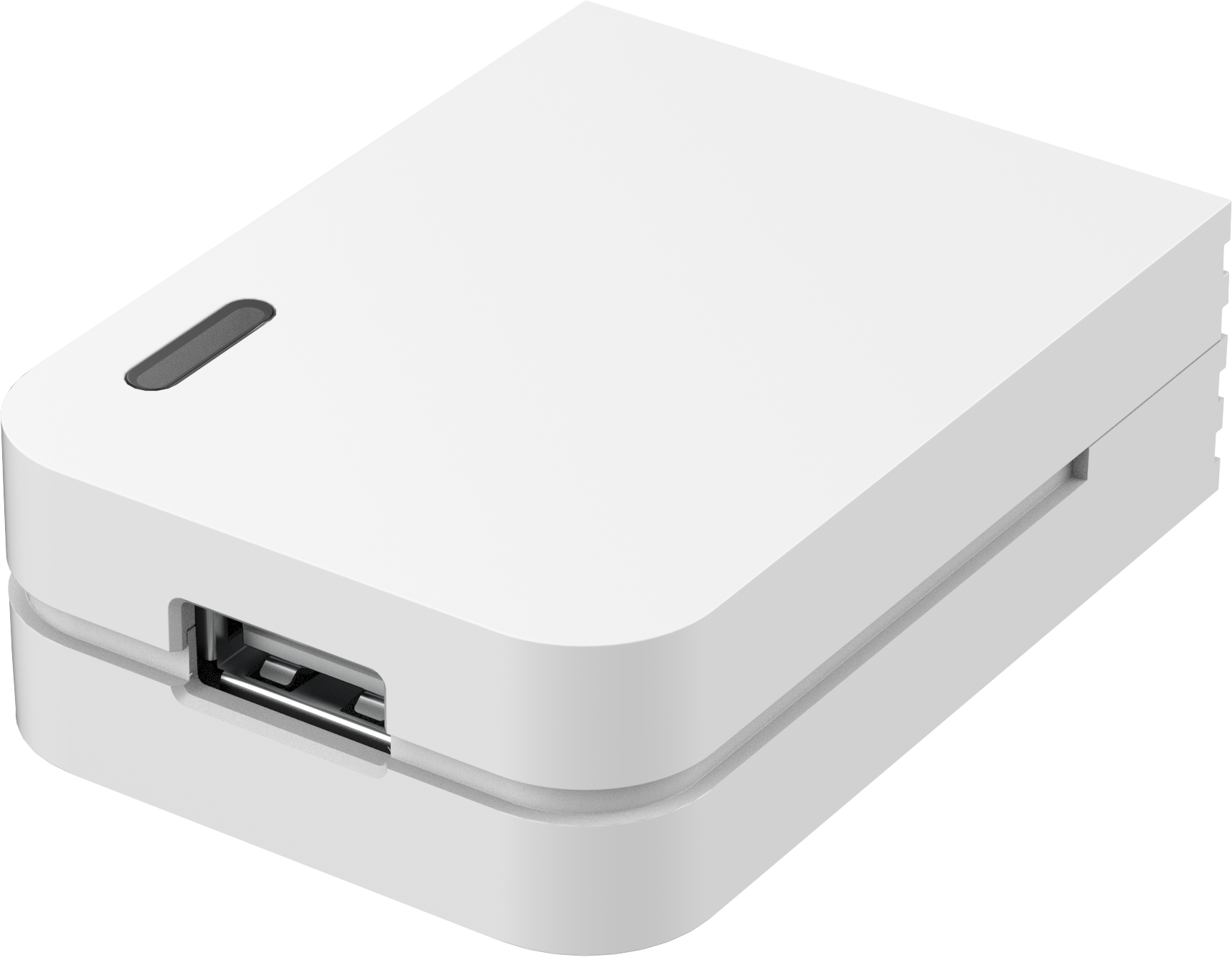

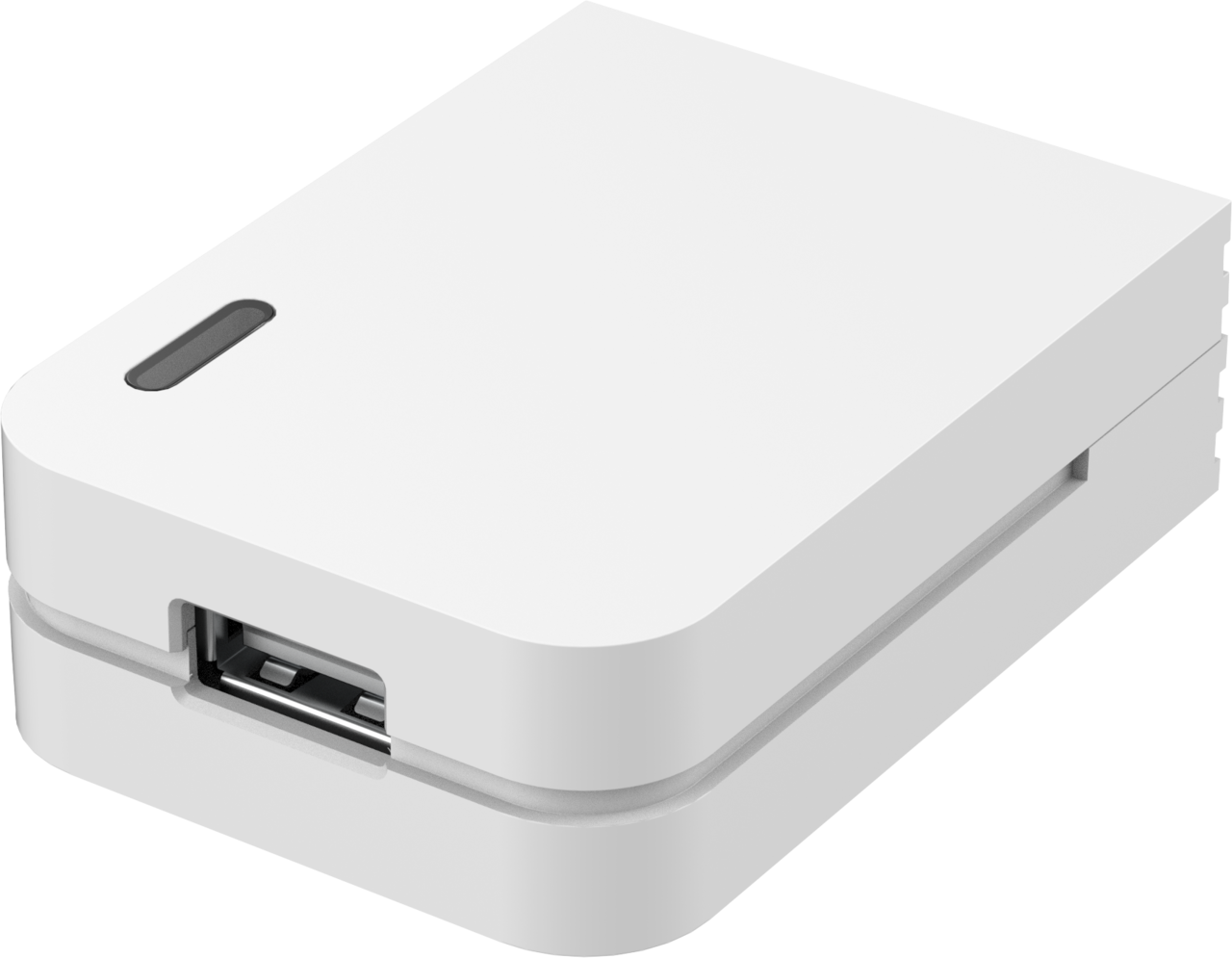

WHITE

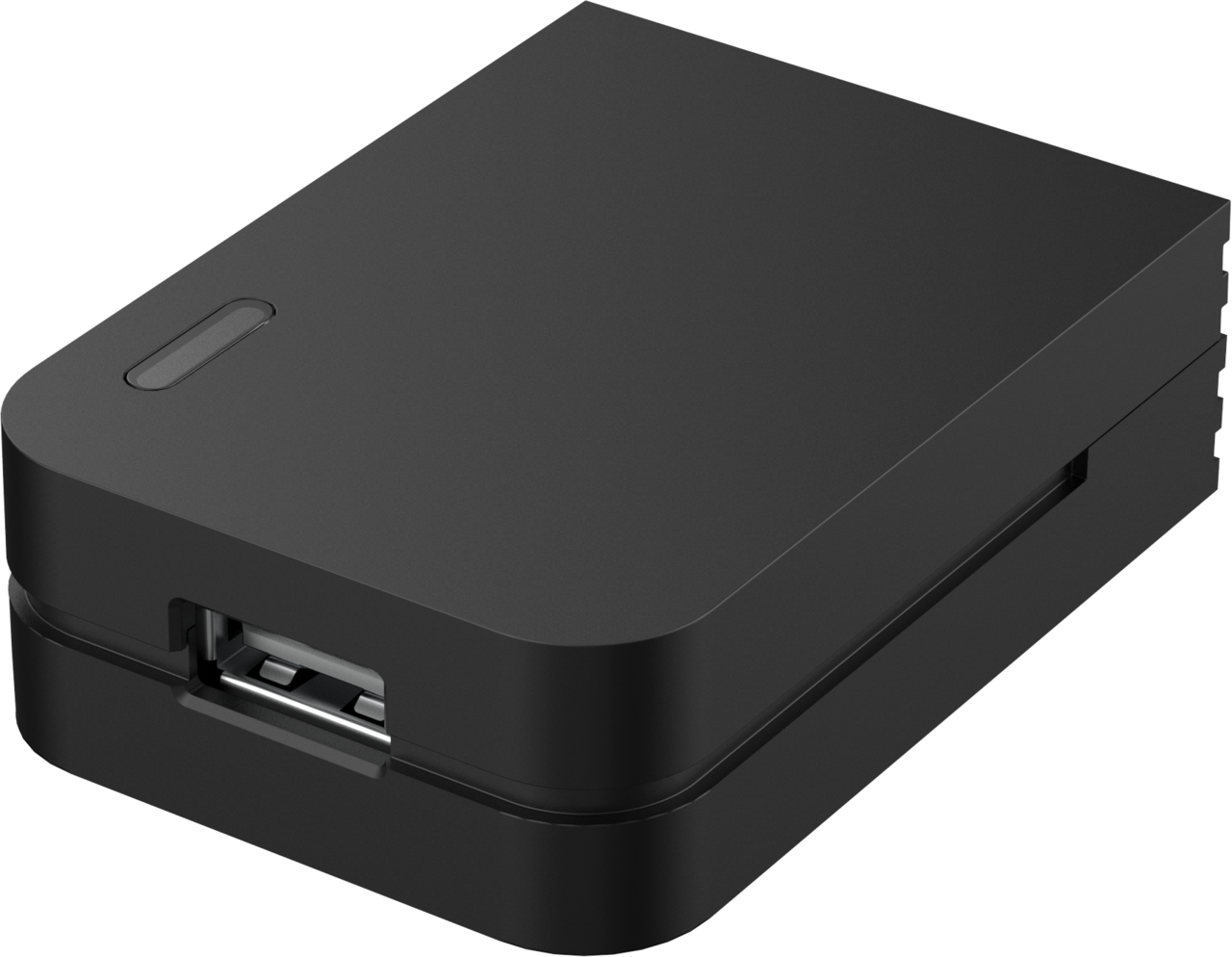

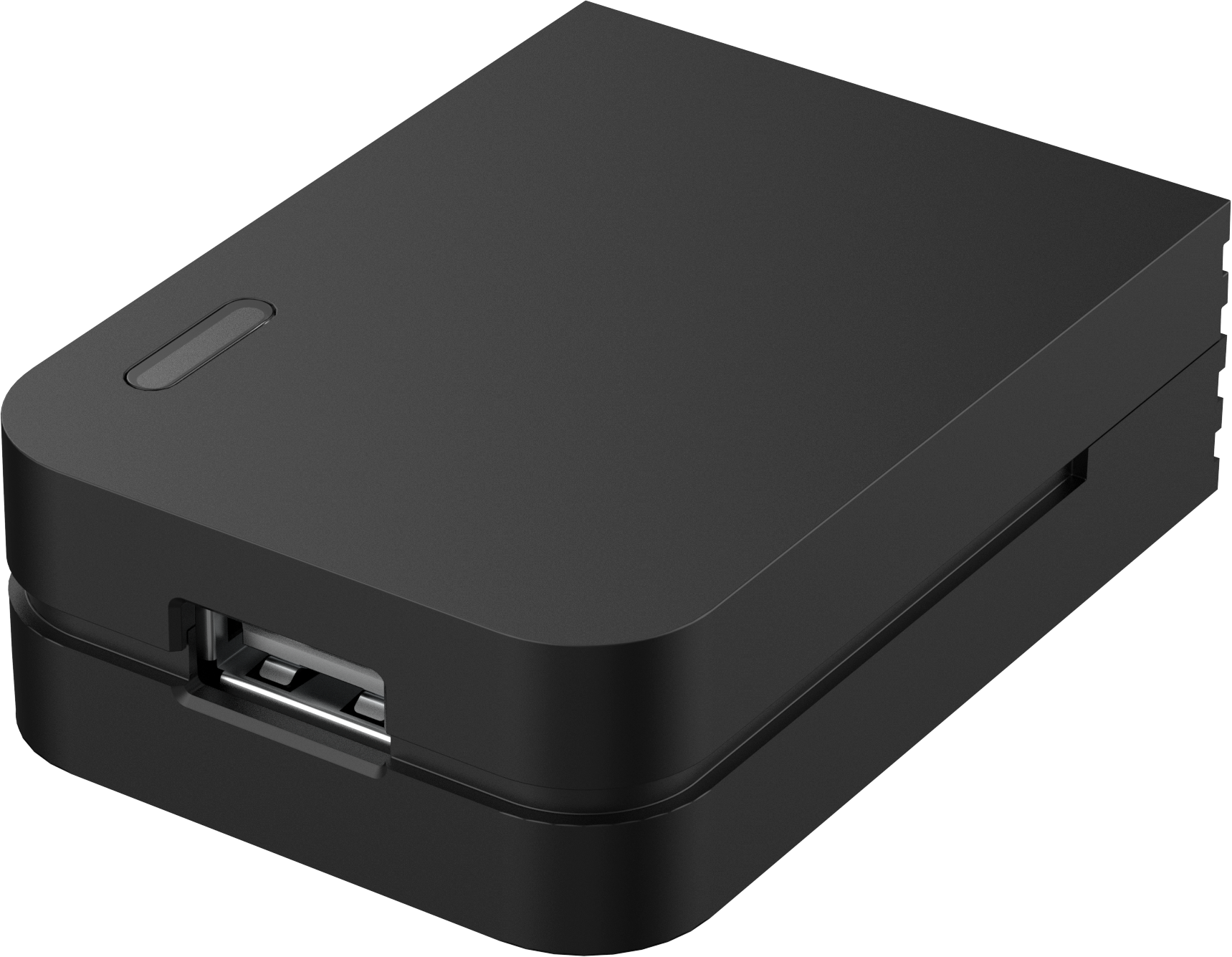

BLACK

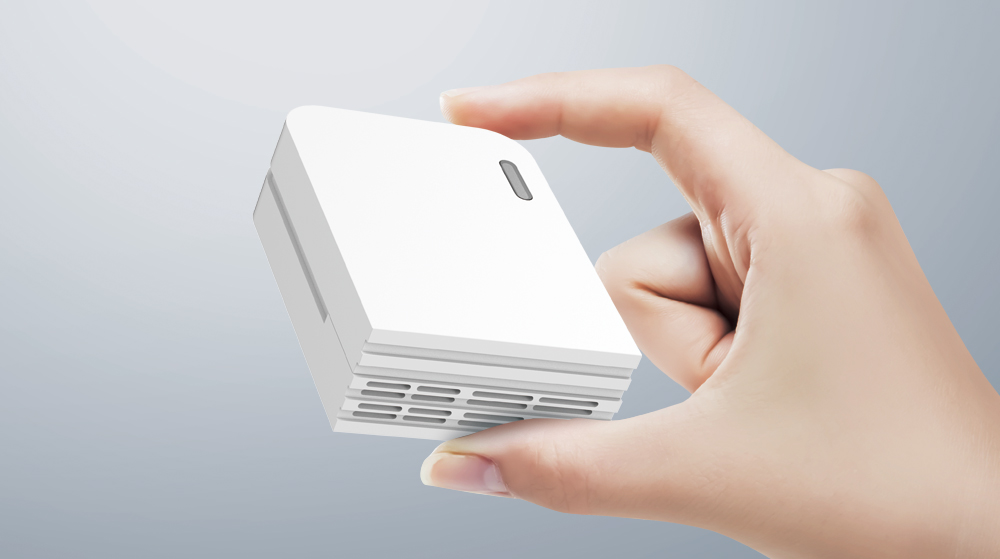

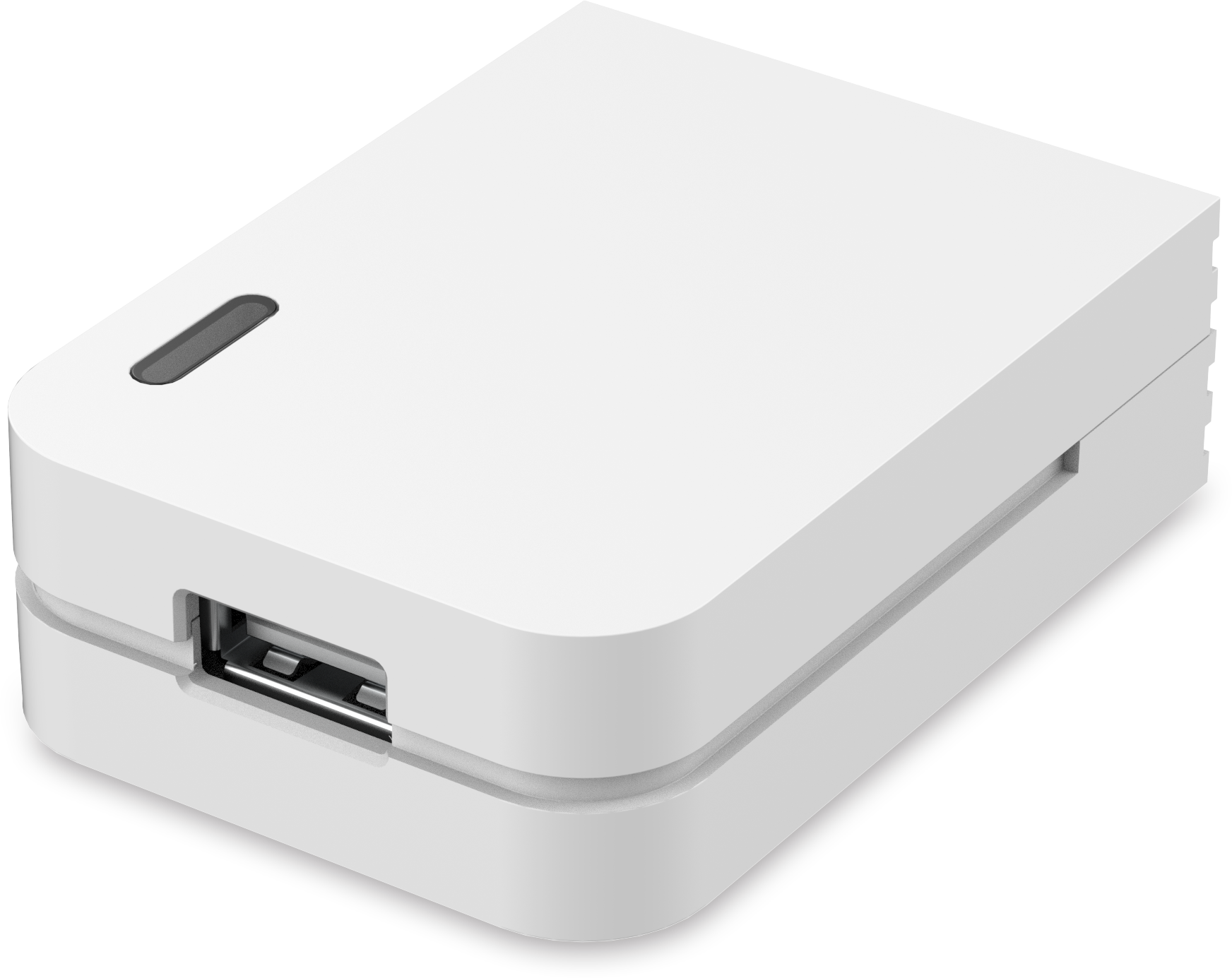

Compact Model

SAP-100 is a super compact, integrated air quality monitoring device.

- Dimensions: 61 X 44 X 19 (mm)

High-Precision Sensor that Detects Even Ultra-Fine Particulate Matter

Using a laser scattering technology, Airam detects 0.3~10㎛ particulates with high precision. Instead of showing converted values, Airam show actual particulate levels in real-time.

- Ultra Fine Particulate (PM1.0), Fine Particulate (PM2.5), Coarse Particulate Matter (PM10)

Multi-Functional Module

Airam is a multi-functional module that not only measures particulate matter but also measures temperature, humidity and VOCs in real-time.

Class 1 Certificate from Ministry of Environment’s Performance Certification for Simplified Particulate Matter Measurement Devices

Airam received Class 1 Certificate (KTR-2021-29) in the Performance Certification for Simplified Particulate Matter Measurement Devices carried out by Korea Testing & Research Institute which is a authentication organization certified by the Ministry of Environment.

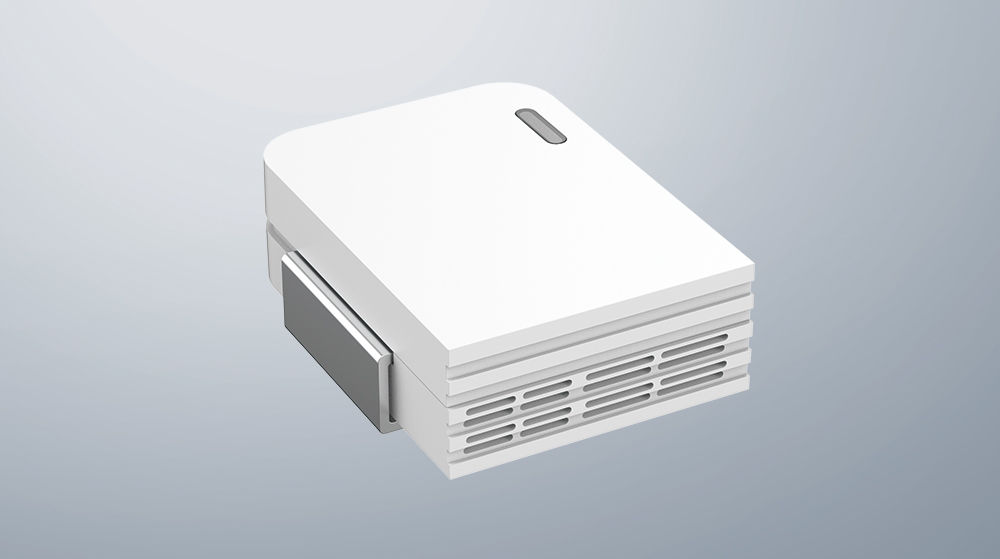

Easy to Secure

Using a bracket (optional), you could secure the device easily.

Compact Model

SAP-100 is a super compact, integrated air quality monitoring device.

- Dimensions: 61 X 44 X 19 (mm)

High-Precision Sensor that Detects Even Ultra-Fine Particulate Matter

Using a laser scattering technology, Airam detects 0.3~10㎛ particulates with high precision. Instead of showing converted values, Airam show actual particulate levels in real-time.

- Ultra Fine Particulate (PM1.0), Fine Particulate (PM2.5), Coarse Particulate Matter (PM10)

Multi-Functional Module

Airam is a multi-functional module that not only measures particulate matter but also measures temperature, humidity and VOCs in real-time.

Class 1 Certificate from Ministry of Environment’s Performance Certification for Simplified Particulate Matter Measurement Devices

Airam received Class 1 Certificate (KTR-2021-29) in the Performance Certification for Simplified Particulate Matter Measurement Devices carried out by Korea Testing & Research Institute which is a authentication organization certified by the Ministry of Environment.

Easy to Secure

Using a bracket (optional), you could secure the device easily.

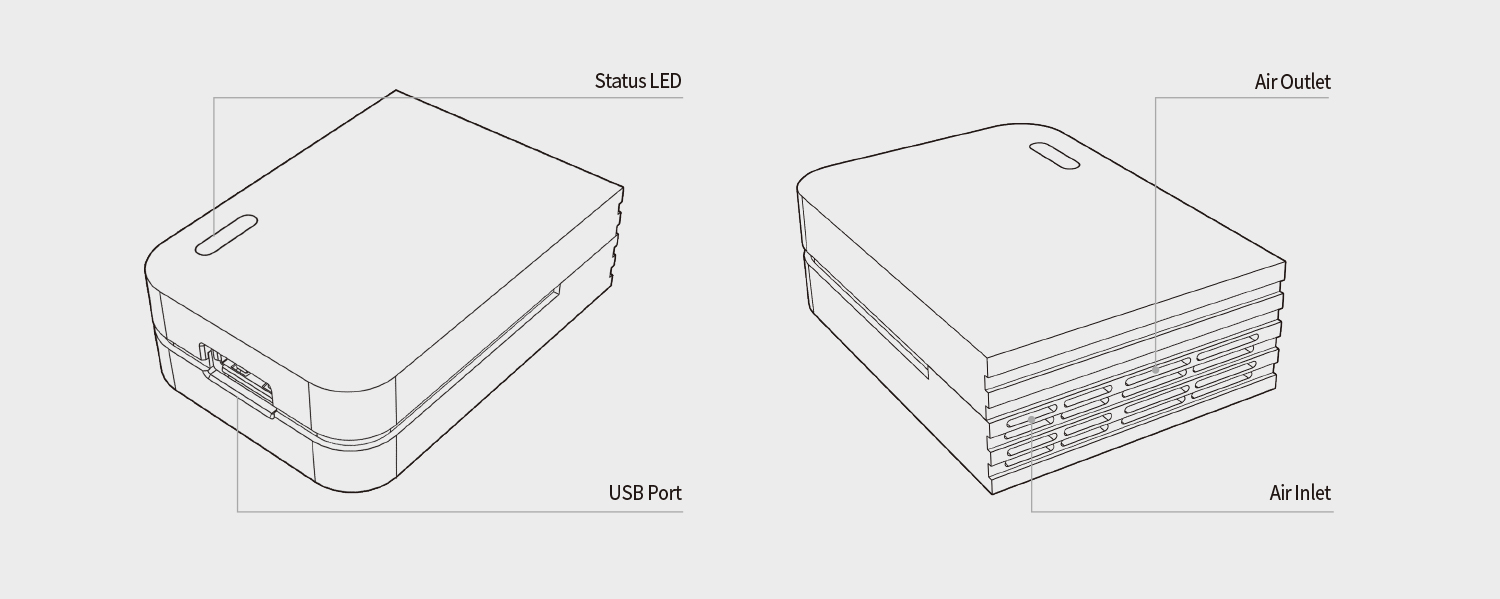

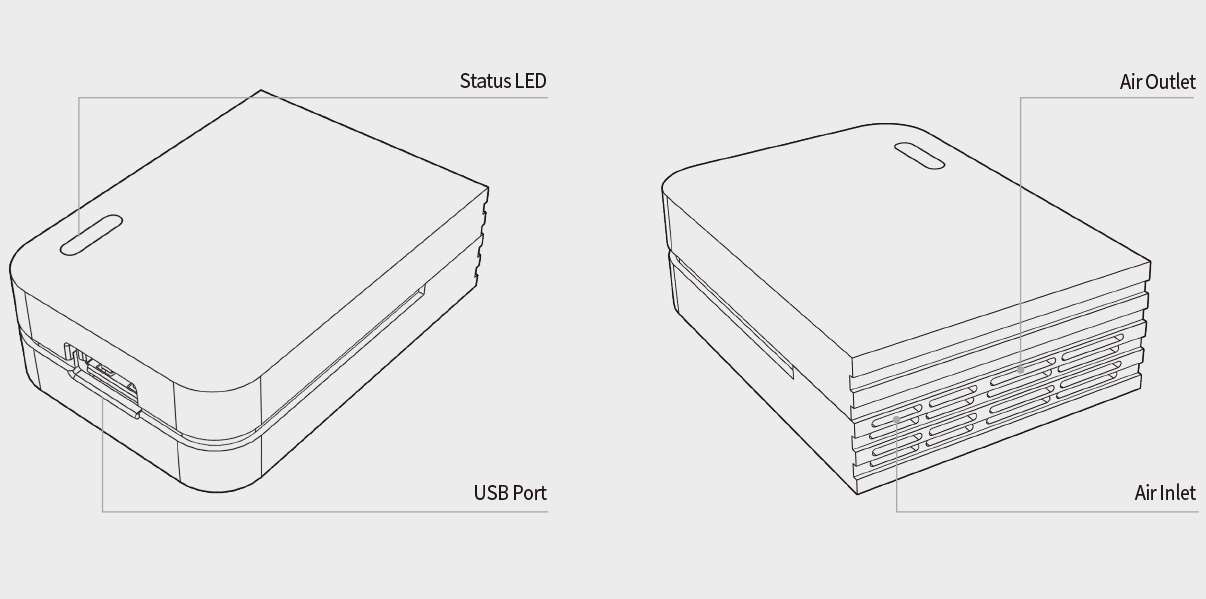

Product Parts Description

SPECIFICATION

Product name
Module-type Air quality measuring device
Model No. (model name)
SAP-100
Color
White, Black
Connector, power supply
USB A Type(5Vdc±10% / 0.1A) : Power & RS485

Sensor measurement range

&

Accuracy

Classification
Measuring range
Accuracy

Ultrafine dust (PM1.0)

0~5,000 μg/m3 (Resolution 1 μg/m3)

0~100μg/m3 : ±10μg/m3, 101~500μg/m3 : ±10%reading 1)

Ultrafine dust (PM2.5)

0~5,000 μg/m3 (Resolution 1 μg/m3)

0~100μg/m3 : ±10μg/m3, 101~500μg/m3 : ±10%reading

Fine dust (PM10)

0~5,000 μg/m3 (Resolution 1 μg/m3)

0~100μg/m3 : ±25μg/m3, 101~500μg/m3 : ±25%reading
Hazardous chemicals (TVOC)

0~10,000ppb (Resolution 1ppb)

±15%
Temperature

-10℃~60℃ (Resolution 0.1℃)

±2℃
Humidity

0~99%RH (Resolution 0.1%)

±5% (@25℃)
Operating temperature and humidity
-10℃~60℃, 0~95%RH
Communication

- Wire communication : USB(RS485)

* Option :  USB(UART)

Weight
46g
Size (W x H x D)

44 X 60 X 19(mm) (size not including the bracket)

Certification

- Standard certification (KC certification)

- Performance 1st grade certification for fine dust

Manufacturer and distributor
Smart Line Co., Ltd.
Manufacturing country
Republic of Korea
Components
Product, manual, USB (1m cable: USB A to A, bracket + M3 fixing screw (option))

1) % is the accuracy on the full scale, %reading is the accuracy on the read value, and the %reading value shows a more precise value.
