For a Quality Life
Airam for Your Space.

Airam detects particulate matter,

CO2 and toxic chemical substances

in the air using its high-precision sensor and

smart algorithm.


For a Airam Life

Airam for Your Space.

Airam detects particulate matter, CO2 and toxic chemical substances
in the air using its high-precision sensor and smart algorithm.

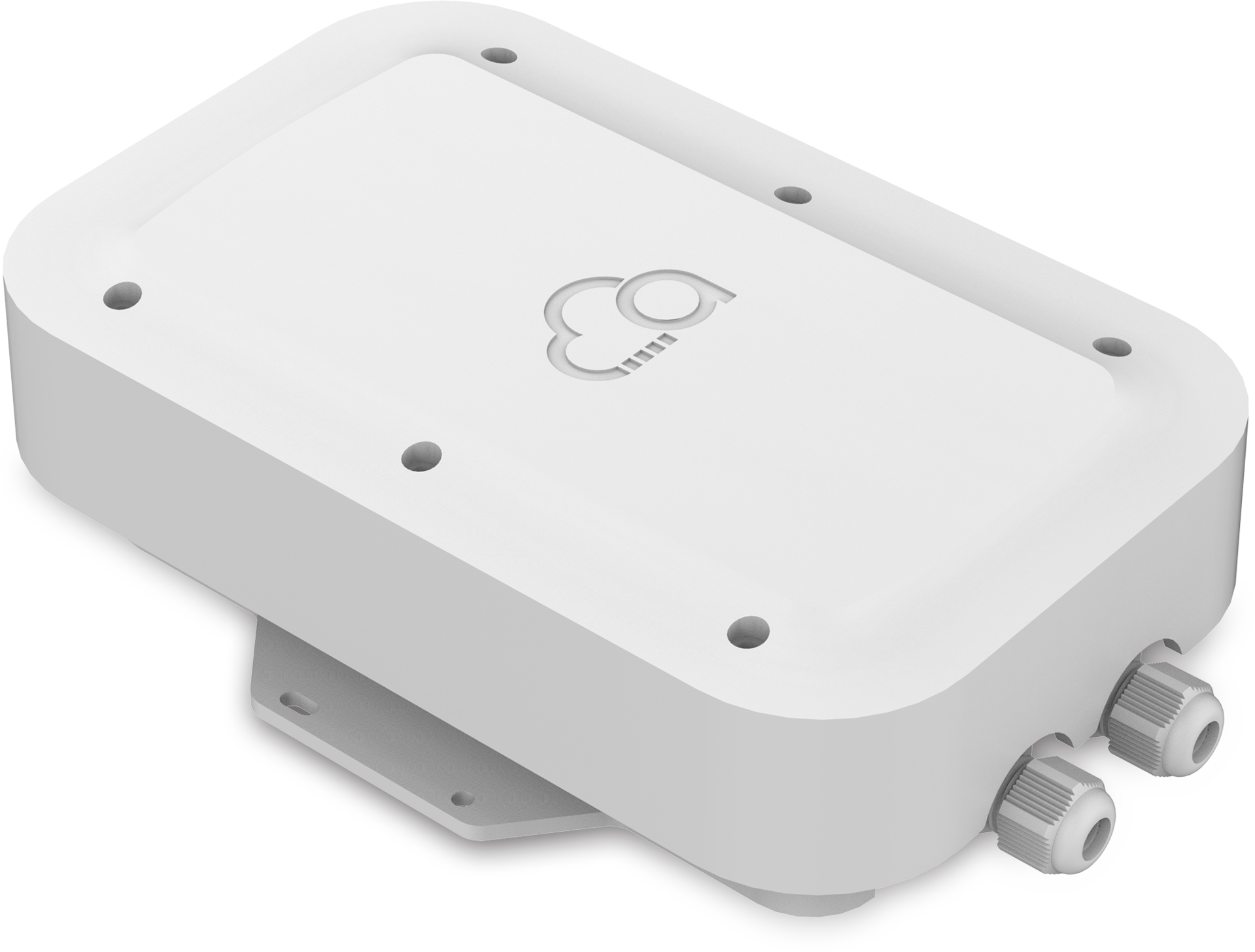

MODEL LINE

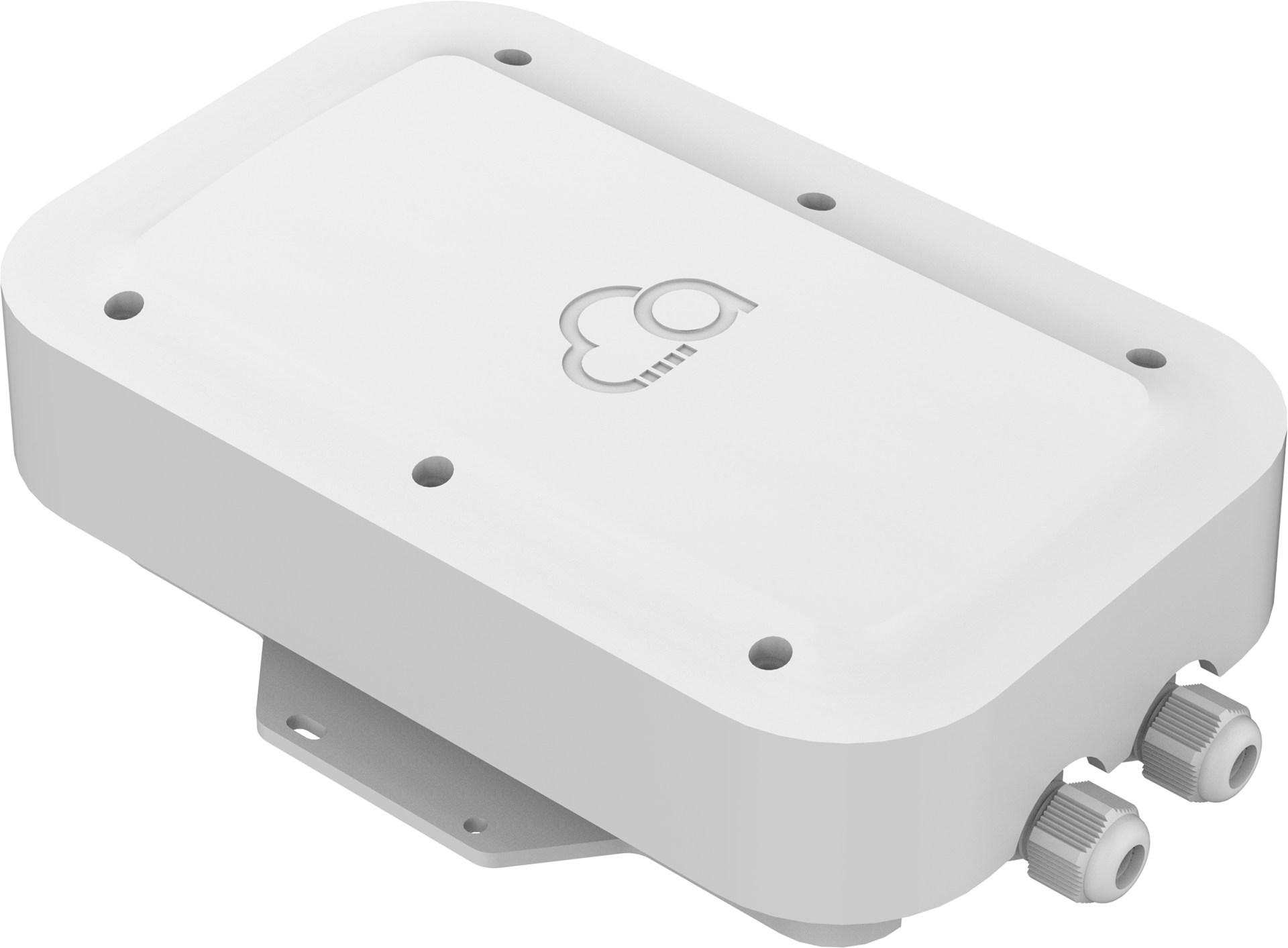

WHITE

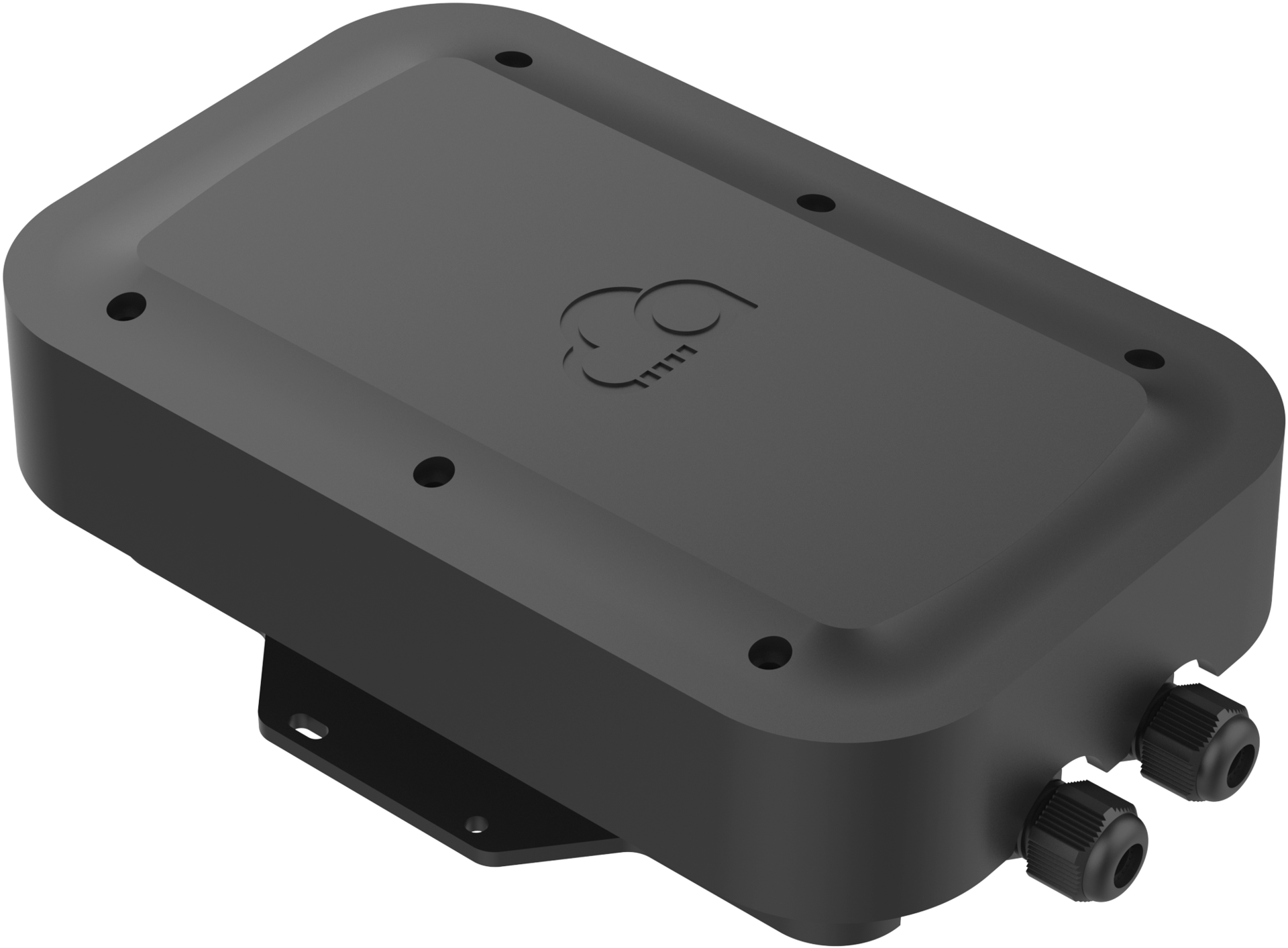

BLACK

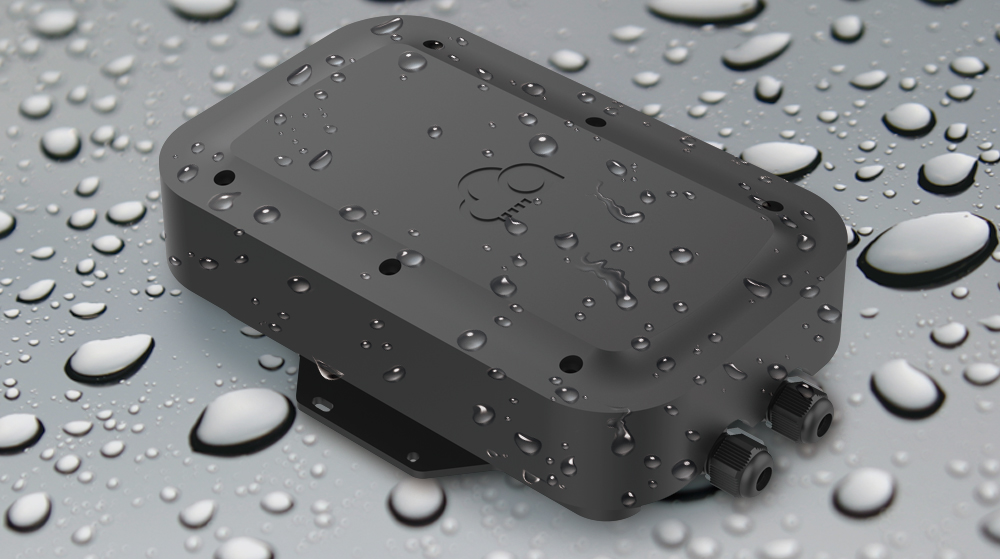

Outdoor Model Airam

SAP-100-O

This model features outdoor sensors and  water resistant system optimal for outdoor use.

High-Precision Sensor that Detects Even Ultra-Fine Particulate Matter

Using a laser scattering technology, Airam detects 0.3~10㎛ particulates with high precision. Instead of showing converted values, Airam show actual particulate levels in real-time.

- Ultra Fine Particulate (PM1.0), Fine Particulate (PM2.5), Coarse Particulate Matter (PM10)

Class 1 Certificate from Ministry of Environment’s Performance Certification for Simplified Particulate Matter Measurement Devices

Airam received Class 1 Certificate (KTR-2021-29) in the Performance Certification for Simplified Particulate Matter Measurement Devices carried out by Korea Testing & Research Institute which is a authentication organization certified by the Ministry of Environment.

Integrated Air Quality Monitoring

Airam not only measures particulate matter but also measures temperature and humidity levels in real-time.

Outdoor Model

Airam SAP-100-O

This model features outdoor sensors and  water resistant system optimal for outdoor use.

High-Precision Sensor that Detects Even Ultra-Fine Particulate Matter

Using a laser scattering technology, Airam detects 0.3~10㎛ particulates with high precision. Instead of showing converted values, Airam show actual particulate levels in real-time.

- Ultra Fine Particulate (PM1.0), Fine Particulate (PM2.5), Coarse Particulate Matter (PM10)

Class 1 Certificate from Ministry of Environment’s Performance Certification for Simplified Particulate Matter Measurement Devices

Airam received Class 1 Certificate (KTR-2021-29) in the Performance Certification for Simplified Particulate Matter Measurement Devices carried out by Korea Testing & Research Institute which is a authentication organization certified by the Ministry of Environment.

Integrated Air Quality Monitoring

Airam not only measures particulate matter but also measures temperature and humidity levels in real-time.

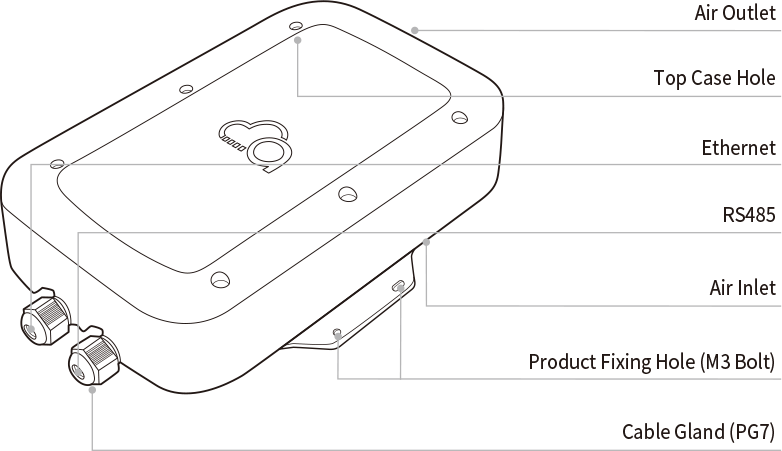

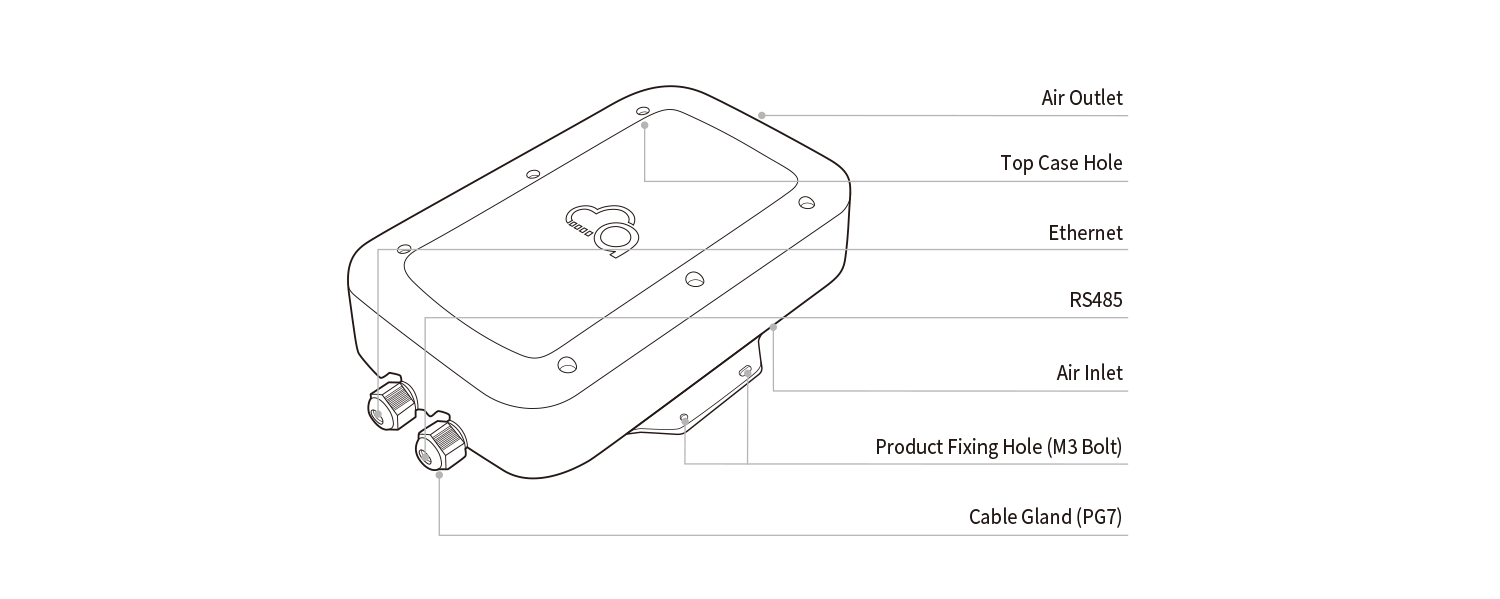

Product Parts Description

SPECIFICATION

Product name
Air quality measuring device for outdoors
Model No. (model name)
SAP-100-O
Color
White, Black
Connector, power supply

- Terminal block (24V±10% / 0.3A)

 : Power and RS485

- RJ45 : Ethernet

Sensor measurement range

&

Accuracy

Classification
Measuring range
Accuracy

Ultrafine dust (PM1.0)

0~30,000 μg/m3 (Resolution 1 μg/m3)

<50ug/m3: ±5μg/m³

50~1000μg/m³: ±10%reading 1)

Ultrafine dust (PM2.5)

0~30,000 μg/m3 (Resolution 1 μg/m3)

<50ug/m3: ±5μg/m³

 50~1000μg/m³: ±10%reading

Fine dust (PM10)

0~30,000 μg/m3 (Resolution 1 μg/m3)

≤100μg/m³ :±15μg/m³

100~1000μg/m³ : ±15% of Reading

Temperature

-30℃~70℃ (Resolution 0.1℃)

±2℃
Humidity

0~99%RH (Resolution 0.1%)

±5% (@25℃)
Operating temperature and humidity
-30℃ ~ 70℃, 0 ~ 95% RH
Communication

- Wire communication : RS485, Ethernet

- Wireless communication: Wi-Fi (2.4GHz and 5GHz supported), BLE (Ver5.0)

Weight
434g
Size (W x H x D)185 X 117 X 55(mm)
Certification

- Standard certification (KC certification)

- Performance 1st grade certification for fine dust

Manufacturer and distributor
Smart Line Co., Ltd.
Manufacturing country
Republic of Korea
Components
Product, manual, connector, M3 fixing screw, perforated paper

1) % is the accuracy on the full scale, %reading is the accuracy on the read value, and the %reading value shows a more precise value.
