For a Quality Life
Airam for Your Space.

Airam detects particulate matter, CO2 in the air using

its high-precision sensor and smart algorithm.


For a Airam Life

Airam for Your Space.

Airam detects particulate matter, CO2 in the air using
its high-precision sensor and smart algorithm.

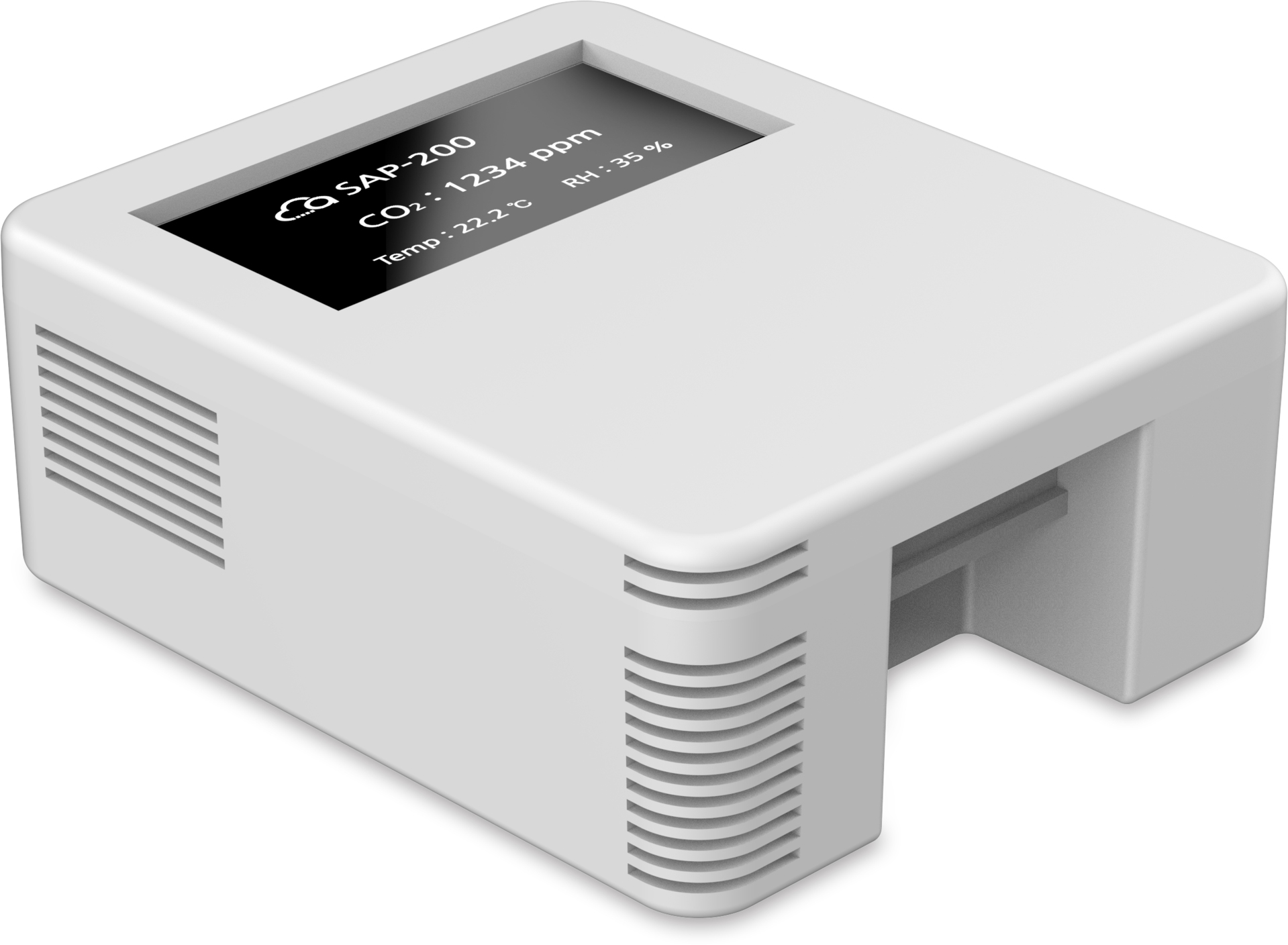

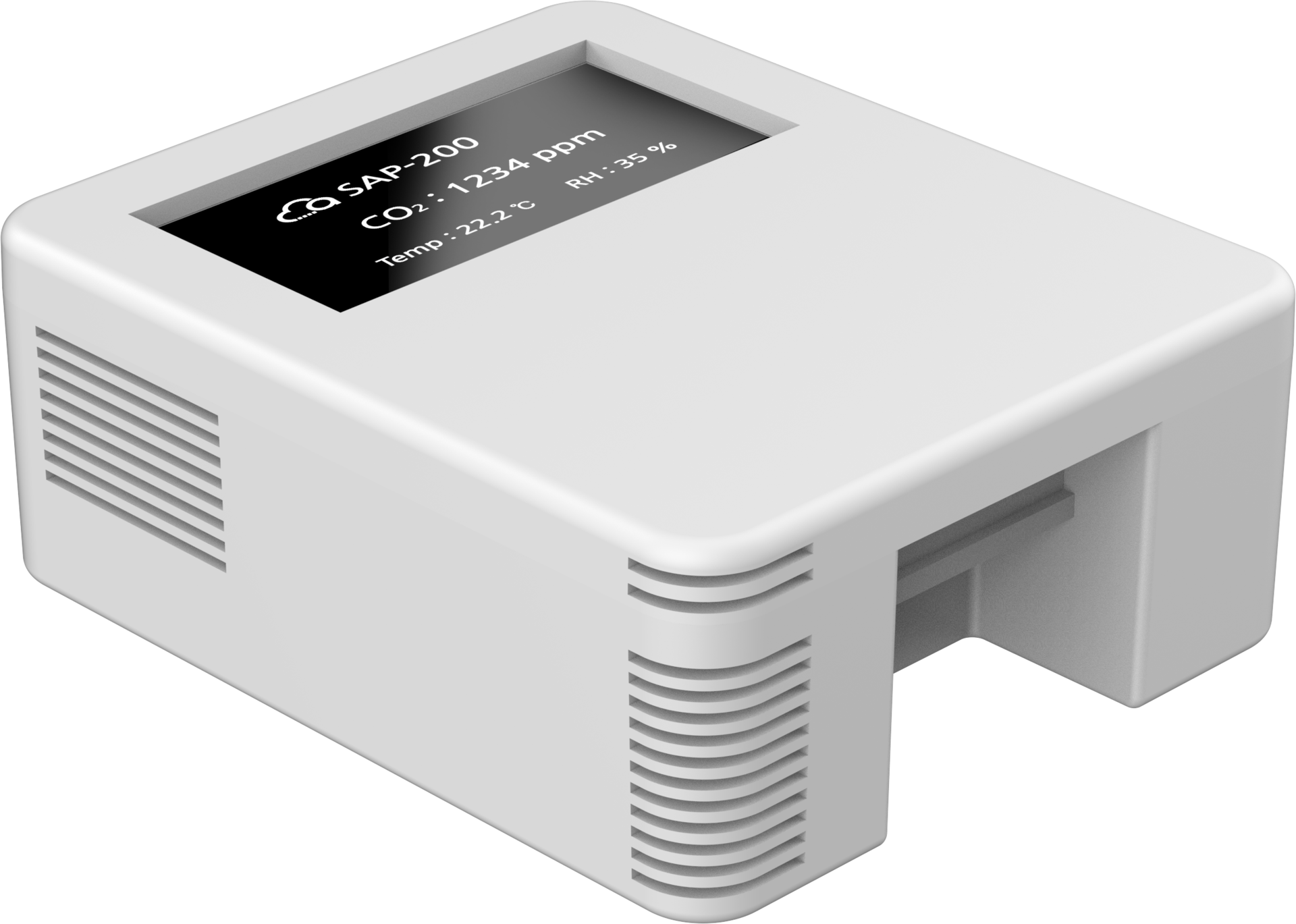

MODEL LINE

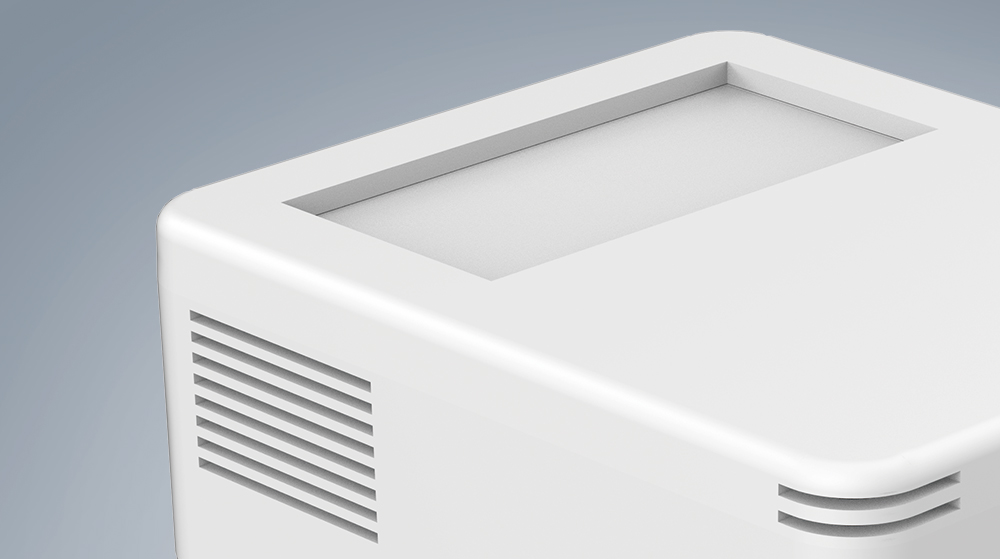

Minimal Round Edge Design

This is a high-performance device that uses a specialized single sensor and it could be applied to a variety of industrial settings.

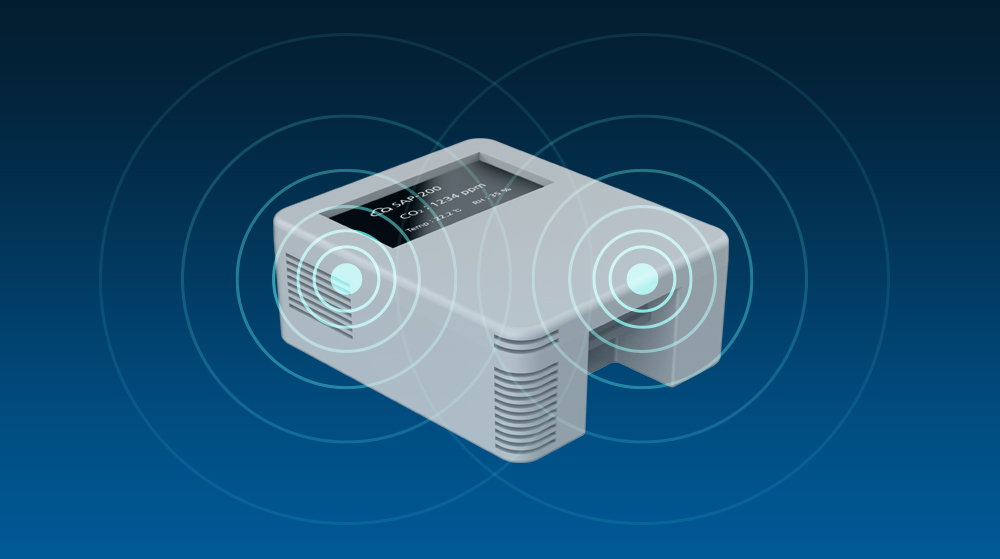

Dual Engine Sensor

Measurement accuracy of sensors usually declines with time due to aging. However, the sensor applied to Airam SAP-200 has two measuring channels and the sensor’s accuracy and precision could be maintained for a long time.

Modular Product

Airam has a modular sensor that could be easily replaced.

Integrated Air Quality Monitoring

Airam not only measures particulate matter but also measures temperature and humidity levels in real-time.

Professional Device with a Specialized Single Sensor

This is a high-performance device that uses a specialized single sensor and it could be applied to a variety of industrial settings.

Dual Engine Sensor

Measurement accuracy of sensors usually declines with time due to aging. However, the sensor applied to Airam SAP-200 has two measuring channels and the sensor’s accuracy and precision could be maintained for a long time.

Modular Product

Airam has a modular sensor that could be easily replaced.

Integrated Air Quality Monitoring

Airam not only measures particulate matter but also measures temperature and humidity levels in real-time.

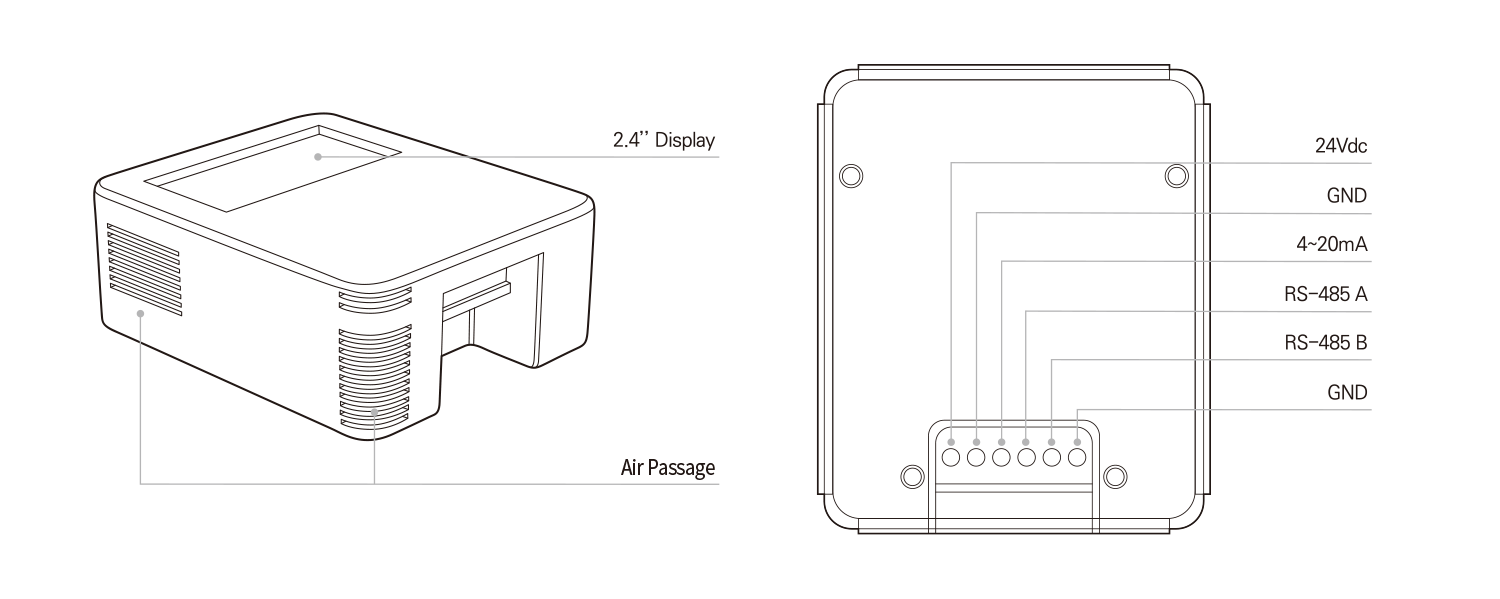

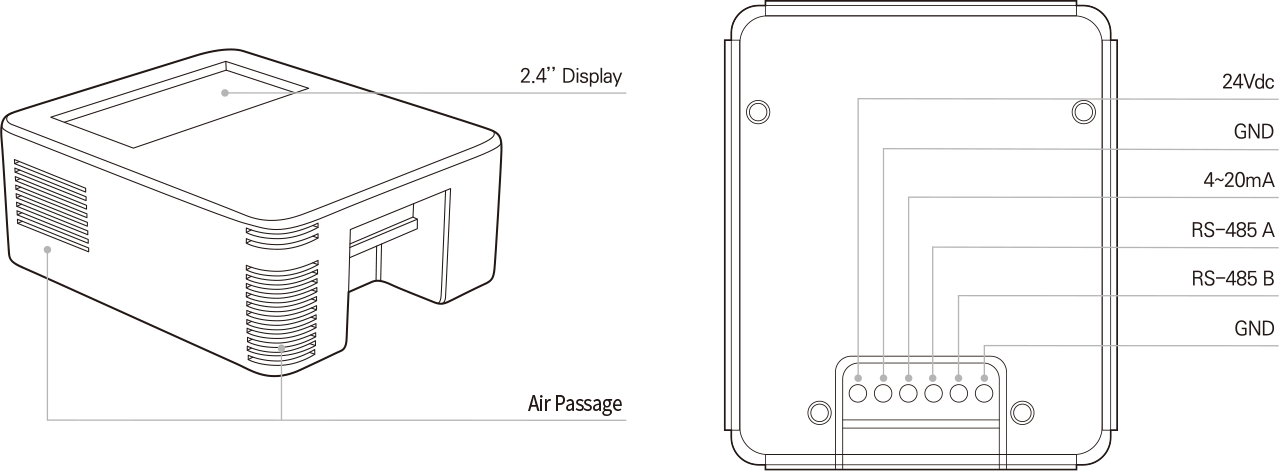

Product Parts Description

SPECIFICATION

Product Name
Single Transmitter
Model No. (model name)
SAP-200
Sensor-Detected Substances
CO2, temperature, humidity

Sensor measurement

range

&

Accuracy

Classification
Measuring range
Accuracy
CO20~5000ppm±(50ppm+ 5% of reading )
Temperature
-20℃ ~ 70℃
0℃ ~ 40℃±1℃
Humidity
0~99% RH
5% ~ 95% RH : ±5% RH
Power supply
 24Vdc ± 5% / 1A
Operating temperature and humidity -20℃ ~ 60℃, 0 ~ 95%RH
External Output  BLE, Wi-Fi, RS485
Wi-Fi Output
Frequency
2.4 GHz
Standards
802.11 b,g,n (2.4GHz)
Data rate
Up to 150Mbps
Protocol
Modbus TCP
Size (W x H x D) 75 x 90 x 36.5(mm)
Manufacturer and distributor Smart Line Co., Ltd.
Manufacturing country Republic of Korea
